Product Info
- Manufacturer:Siemens
- Sub-Category:Motor starter controls
Description

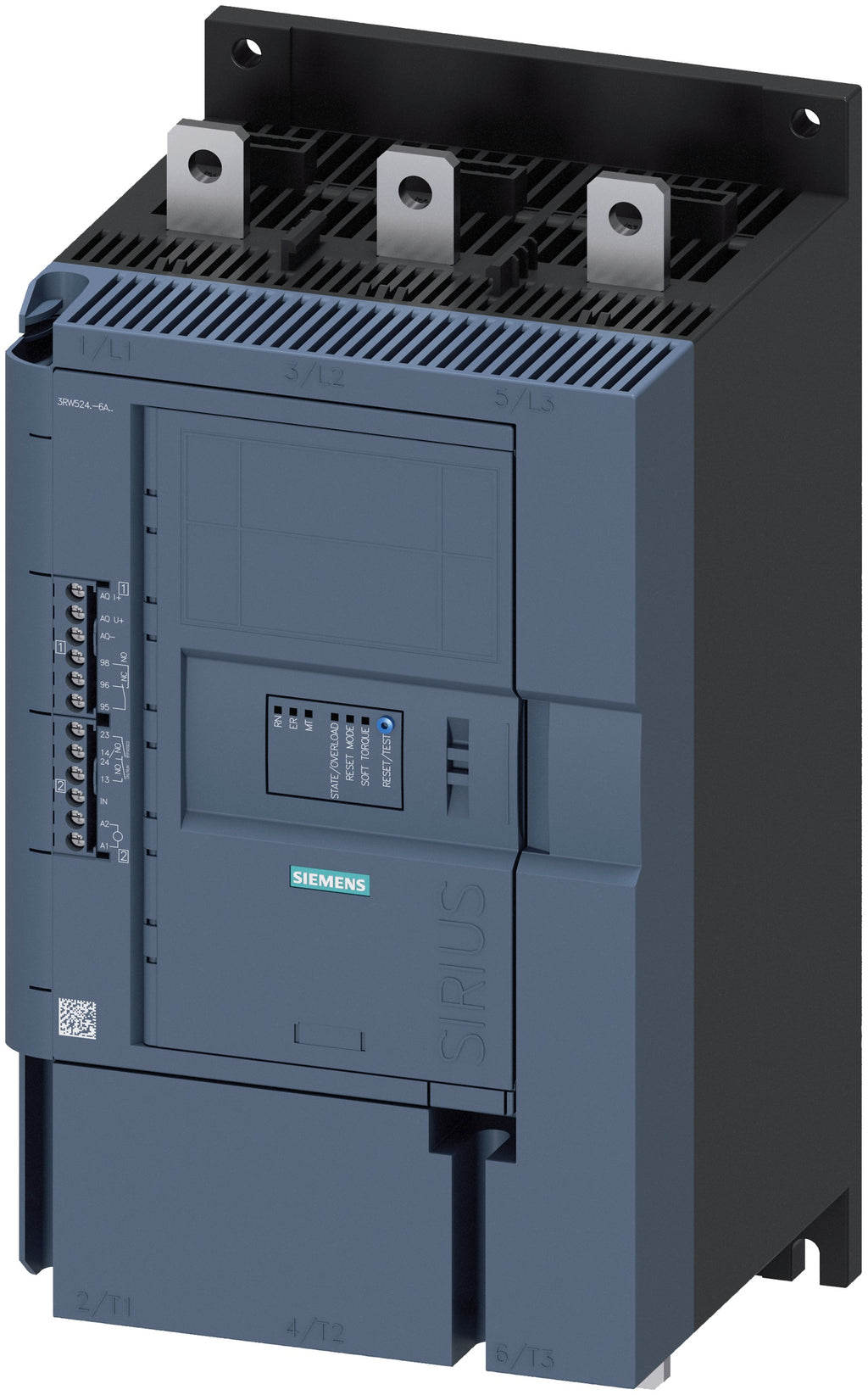

3RW52486AC14
3RW52486AC14 is a Siemens 3RW52 Series soft starter designed for motor control applications with a 570A current rating and 480V voltage. 3RW52486AC14 offers reliable soft start and stop functions for three-phase motors, supporting motor power up to 560 kW with automatic, manual, or remote reset options. It features busbar and screw terminal connections, an IP00 enclosure, and operates within a temperature range of -25 to 60 degrees Celsius.
- Series: 3RW52
- Current Rating: 570A
- Voltage: 200 to 480 VAC
- Phase: 3
- Motor Power: Up to 560 kW
- Control Voltage: 110 to 250 VAC
- Connection Type: Busbar/Screw Terminal
- Enclosure Type: IP00
- Reset Type: Automatic, Manual, Remote
- Auxiliary Contact Rating: R300/B300
- Operating Temperature: -25 to 60 °C
- Dimensions: 393 mm H x 210 mm W x 203 mm D
Specifications
- Part Number: 3RW52486AC14
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Motor starter controls
- Family : 3RW52
- Voltage : 200 to 480
Product Data
- UPC : 804766690181
- Dimensions : 393 mm H x 210 mm W x 203 mm D
- Weight : 26.539 lb
