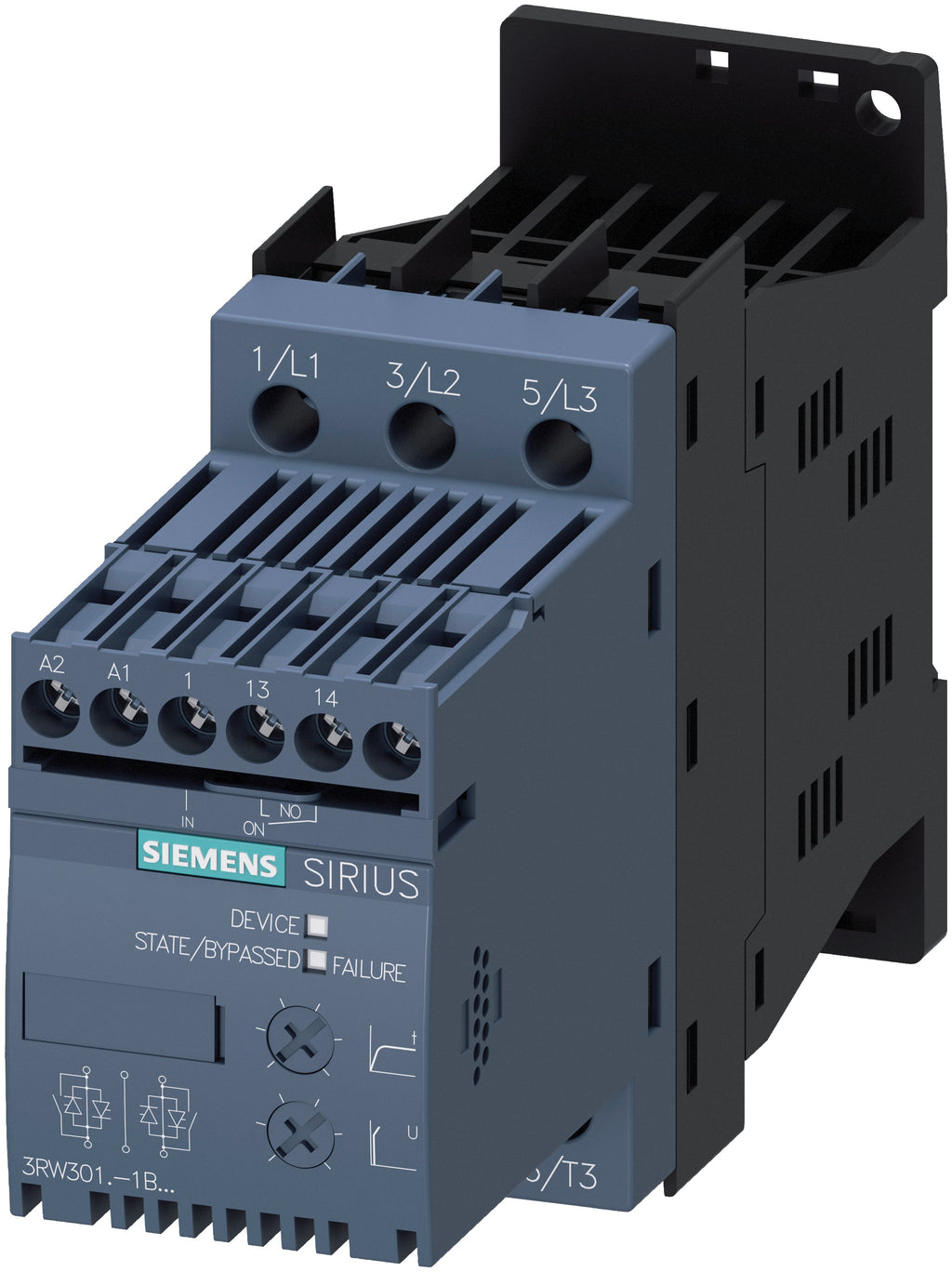

3RW30131BB14 - Siemens 3.6A 3-Pole Soft Starter 110-230V AC/DC Control, IP20, SIRIUS Series

3RW30131BB14

3RW30131BB14 is a Siemens SIRIUS series soft starter designed for motor control applications with a 3.6 ampere rating and 3-pole configuration.This soft starter supports motor power ratings of 0.5 HP at 230 V and 1.5 HP at 460 V, with a control supply voltage range of 110 to 230 V AC/DC. It features integrated bypass contact system, screw terminal connections, and an IP20 enclosure suitable for DIN rail mounting. The device operates at 50/60 Hz frequency and includes adjustable time delay for smooth motor starting.

Key Specifications
• Amperage Rating: 3.6 A
• Poles: 3
• Control Supply Voltage: 110-230 V AC/DC
• Motor Power: 0.5 HP @ 230 V, 1.5 HP @ 460 V
• Enclosure Type: IP20
• Mounting Type: DIN Rail
• Series/Frame: SIRIUS
• Frequency: 50/60 Hz
• Connection Type: Screw Terminals
• Integrated Bypass Contact System
• Operating Temperature: -25 to 60 °C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 3RW30131BB14
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor starter controls
• Family : 3RW30
• Voltage : 200 to 480 200 to 480



Product Data

• UPC : 40892691856
• GTIN : 00040892691856
• Dimensions : 95 mm H x 45 mm W x 150 mm D
• Weight : 0.966 lb
