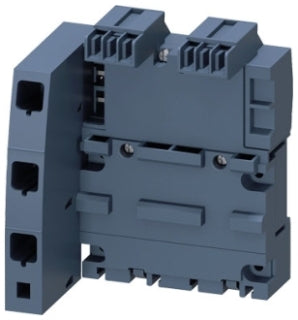

3RV29171A - Siemens 3-Phase Busbar 63A 500V 3 Poles S00/S0 Frame

3RV29171A

3RV29171A is a Siemens 3-phase busbar designed for use with 2 circuit breakers of size S00 and S0, providing reliable power distribution in motor control applications.3RV29171A features a 63A thermal current rating and supports an operating voltage of 500V AC with a surge voltage resistance of 6 kV. It is suitable for mounting with snap-on fastening on a 35 mm standard rail and certified to CE, UL, CSA, and CCC standards.

• Amperage: 63 A thermal current
• Voltage: 500 V AC (600 V UL/CSA)
• Number of Poles: 3
• Mounting Type: Snap-on fastening on 35 mm standard rail
• Interrupt Rating: Surge voltage resistance 6 kV
• Frame/Series: S00/S0 size circuit breakers
• Power Loss: 4.52 W per pole at rated current
• Protection Class: IP00 front
• Certifications: CE, UL, CSA, CCC
• Dimensions: 129 mm height, 110 mm width, 87 mm depth

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RV29171A
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Terminal Blocks
• Section : Terminal Blocks

Product Data

• UPC : 662643925098
• GTIN : 00662643925098
• Dimensions : 129 mm H x 110 mm W x 86.5 mm D
• Weight : 0.941 lb
