Product Info
- Manufacturer:Siemens
- Sub-Category:Motor starter controls
Description

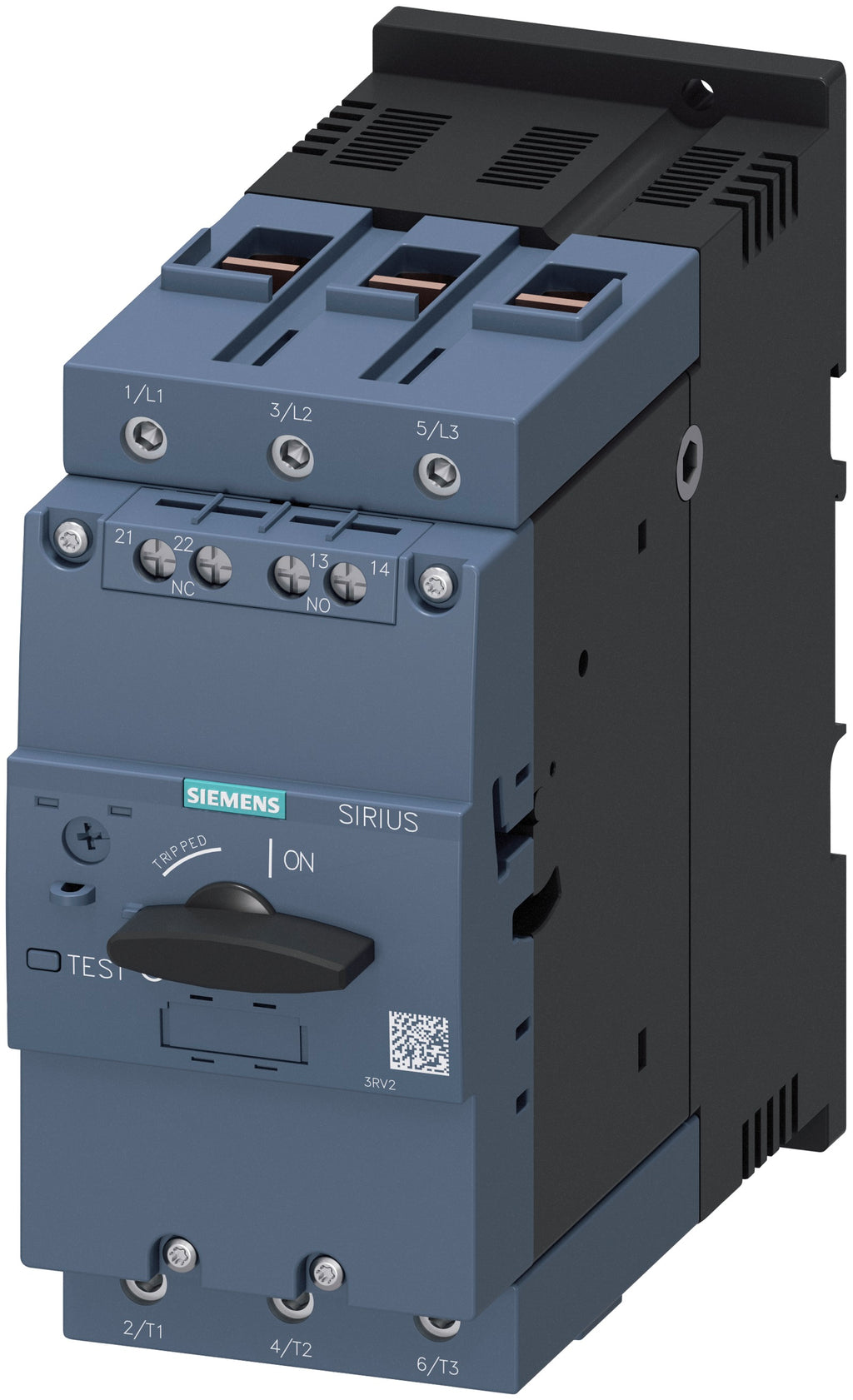

3RV20414MA15
3RV20414MA15 is a Siemens motor protection circuit breaker designed for reliable motor overload and short-circuit protection with adjustable thermal-magnetic trip settings.3RV20414MA15 features a Class 10 trip unit with an adjustable current range of 80 to 100 amps, suitable for 690 VAC applications. It has 3 poles, a frame size S3, and a 1300 A interrupt rating with screw terminal connections. The breaker includes 1 normally open and 1 normally closed transverse auxiliary contact for signaling and control. It is engineered for motor starter protection with a compact design and robust construction.
- Key Specifications
- Amperage: 80-100 A adjustable
- Voltage: 690 VAC
- Poles: 3
- Interrupt Rating: 1300 A
- Trip Unit: Thermal Magnetic, Class 10
- Frame Size: S3
- Mounting Type: Screw Terminal
- Auxiliary Contacts: 1 NO + 1 NC transverse
- Standards: Motor protection circuit breaker
Specifications
- Part Number: 3RV20414MA15
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Motor starter controls
- Family : 3RV2
- Voltage : 690 690
Product Data
- UPC : 804766472718
- Country of Origin : Germany
- Dimensions : 7.677 x 4.055 x 6.772 inch
- Weight : 5.053 lb
