Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV20314VA15

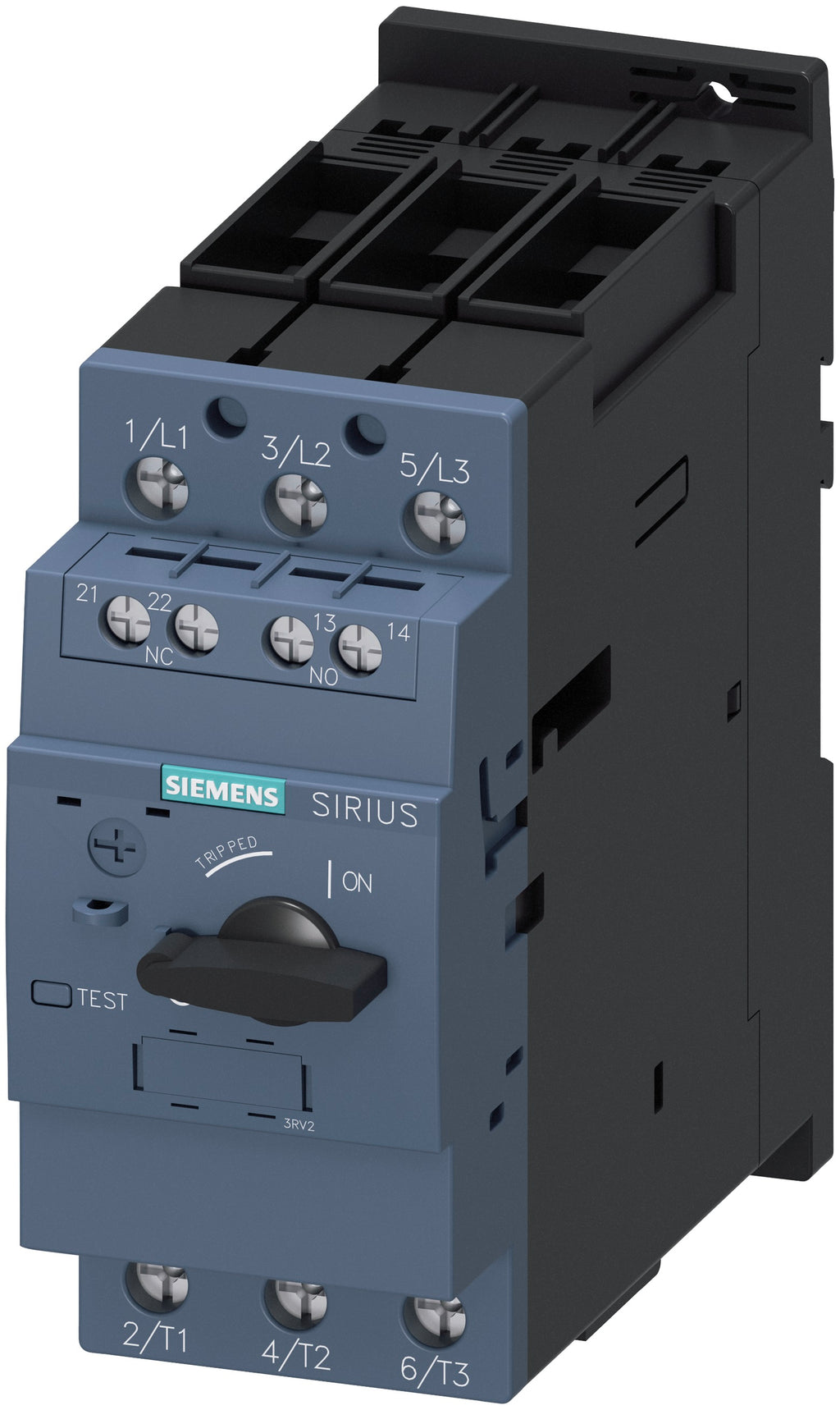

3RV20314VA15 is a Siemens SIRIUS motor protection circuit breaker designed for reliable motor protection in industrial applications.This circuit breaker features a 45 ampere rating with a voltage rating of 690 VAC, suitable for 3-phase power systems. It has a 3-pole configuration and an interrupt rating of 4 kA. The breaker uses a thermal magnetic trip unit with a trip range of 35 to 45 A and a frame size S2. It supports screw terminal connections and is mountable on DIN rail with snap-on or threaded options. The enclosure rating is IP00/IP20, and it operates within a temperature range of -20 to 60 degrees Celsius. Auxiliary contacts include 1NO-1NC.
- Key Specifications
- Amperage Rating: 35 to 45 A
- Voltage Rating: 690 VAC
- Number of Poles: 3
- Interrupt Rating: 4 kA
- Frame: S2
- Trip Unit: Thermal Magnetic
- Mounting Type: DIN Rail, Snap-On, Threaded
- Connection Type: Screw Terminals
- Auxiliary Contacts: 1NO-1NC
- Enclosure Type: IP00/IP20
- Operating Temperature: -20 to 60 °C
- Dimensions: 140 mm H x 55 mm W x 149 mm D
Specifications
- Part Number: 3RV20314VA15
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
- Type : 3RV
- Voltage : 690 690
Product Data
- UPC : 887621920098
- Country of Origin : Germany
- Dimensions : 6.575 x 5.748 x 2.677 inch
- Weight : 2.381 lb
