Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV20314PA10

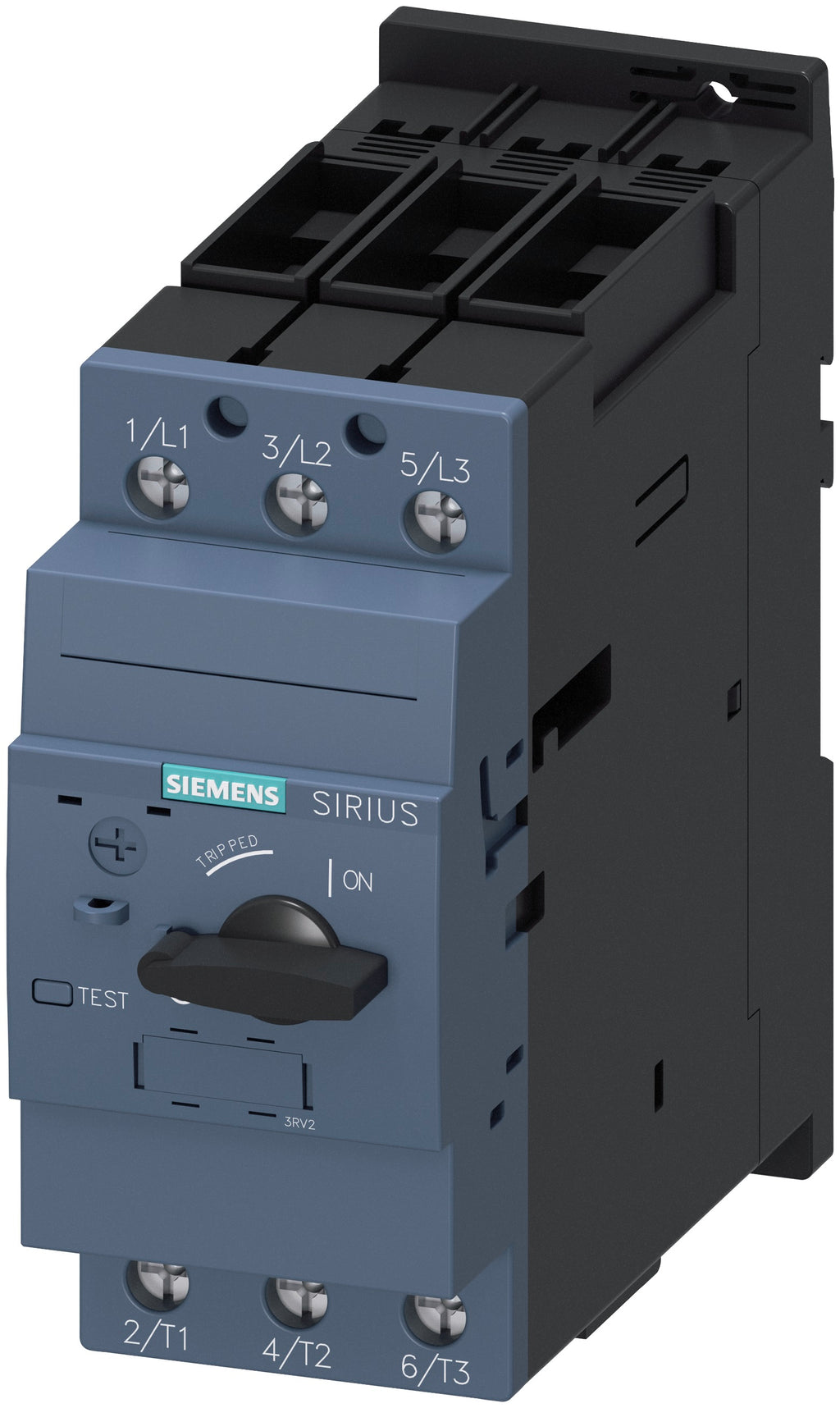

3RV20314PA10 is a Siemens motor protection circuit breaker designed for reliable protection in industrial applications. This device features a Class 10 thermal-magnetic trip unit and is suitable for motor protection circuits requiring precise overload and short-circuit protection. The 3RV20314PA10 is part of the 3RV2 series and is built in the S2 frame. It offers a current rating of 28 to 36 A, with a voltage rating up to 690 VAC. The breaker is designed for 3-pole operation and features a standard interrupt rating of 4 kA. It is mounted on a DIN rail and uses screw terminals for secure wiring connections. The device is rated for operation at frequencies of 50 to 60 Hz and is suitable for use in environments with temperatures from -20 to 60 degrees Celsius.
- Part Number: 3RV20314PA10
- Manufacturer: Siemens
- Series: 3RV2
- Frame: S2
- Current Rating: 28 to 36 A
- Voltage Rating: 690 VAC
- Number of Poles: 3
- Interrupt Rating: 4 kA
- Mounting Type: DIN Rail
- Connection Type: Screw Terminal
- Trip Unit: Class 10 Thermal-Magnetic
- Frequency Rating: 50 to 60 Hz
- Temperature Rating: -20 to 60 degrees Celsius
Specifications
- Part Number: 3RV20314PA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
- Type : 3RV
- Voltage : 690 690
Product Data
- UPC : 887621919962
- Country of Origin : Germany
- Dimensions : 5.787 x 2.441 x 6.575 inch
- Weight : 2.368 lb
- Certification : Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845
