Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV20314JA10

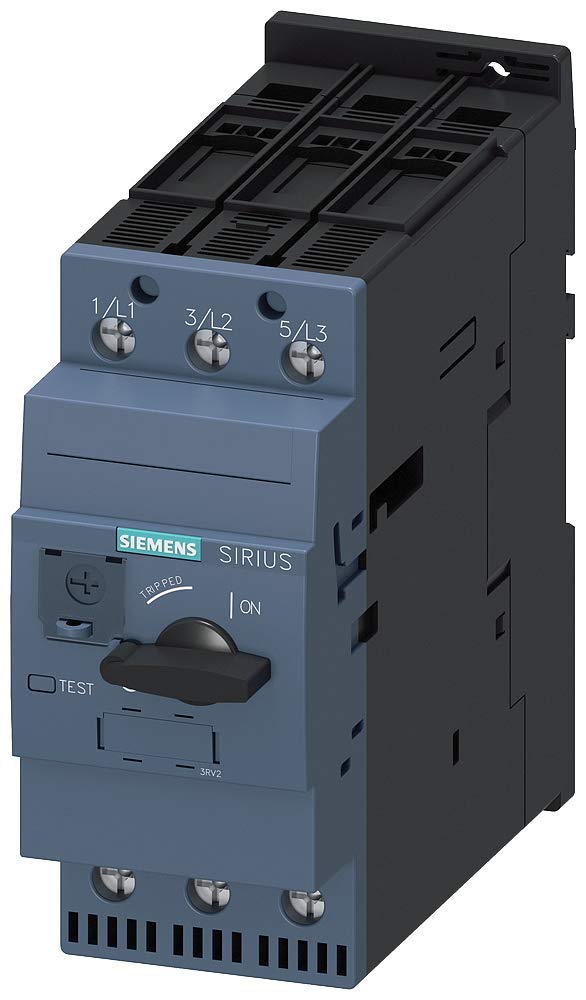

3RV20314JA10 is a Siemens SIRIUS motor protection circuit breaker designed for reliable protection of motor circuits in industrial applications. This 3-pole, 65A, 690VAC circuit breaker features a thermomagnetic trip unit, S2 frame, and a 54 to 65A adjustable trip range. It offers a 4 kA interrupt rating, screw terminal connections, and is suitable for DIN rail, snap-on, or threaded mounting. The device is rated for 50/60 Hz frequency and provides Class 10 motor protection.
- Part Number: 3RV20314JA10
- Manufacturer: Siemens
- Series/Frame: SIRIUS S2
- Amperage: 65A
- Voltage Rating: 690VAC
- Poles: 3
- Interrupt Rating: 4 kA
- Mounting Type: DIN Rail/Snap-On/Threaded
- Terminal Type: Screw
- Frequency: 50/60 Hz
- Actuator Type: Rotary
- Enclosure Rating: IP00/IP20
Specifications
- Part Number: 3RV20314JA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
- Type : 3RV
- Voltage : 690 690
Product Data
- UPC : 804766061639
- Country of Origin : Germany
- Dimensions : 5.787 x 2.441 x 6.575 inch
- Weight : 2.604 lb
- Certification : Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845
