Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV20214NA15

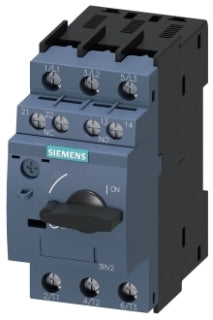

3RV20214NA15 is a Siemens motor protection circuit breaker designed for reliable motor control and protection.This 3-pole breaker supports 23 to 28 amps at 690 volts AC with a 4 kA interrupt rating and features a thermal magnetic trip unit.
- Amperage Rating: 23 to 28 A
- Voltage Rating: 690 V AC
- Number of Poles: 3
- Interrupt Rating: 4 kA
- Trip Type: Thermal Magnetic
- Mounting Type: DIN Rail (35 mm standard rail)
- Frame/Series: 3RV2/S0
- Auxiliary Contact: 1NO-1NC
- Connection Type: Screw terminals
- Enclosure Type: IP20
- Operating Temperature: -20 to 60 °C
- Dimensions: 97 mm H x 45 mm W x 96 mm D
- Certifications: KC, ISO 13849, IEC 61508 compliant
Specifications
- Part Number: 3RV20214NA15
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
- Type : 3RV
- Voltage : 690 690
Product Data
- UPC : 662643924565
- Country of Origin : Germany
- Dimensions : 4.016 x 1.929 x 4.016 inch
- Weight : 0.873
