Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV20214FA15

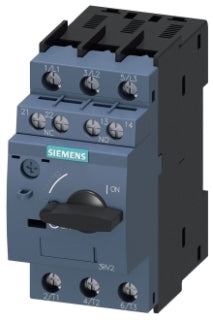

3RV20214FA15 is a Siemens motor protection circuit breaker designed for reliable motor circuit protection with a 40 ampere rating and 690 VAC voltage capacity.3RV20214FA15 features a thermomagnetic trip unit with a trip range of 34 to 40 A and a 3 kA interrupt rating. It is built on the S0 frame and mounts easily on DIN rails with screw terminals for secure wiring. The breaker supports 3 poles and includes auxiliary contacts rated 1NO-1NC. It is rated for use in 50/60 Hz systems and has an IP20 enclosure rating.
- Key Specifications
- Amperage: 40 A (trip range 34-40 A)
- Voltage Rating: 690 VAC
- Number of Poles: 3
- Mounting Type: DIN Rail
- Interrupt Rating: 3 kA
- Frame/Series: S0
- Trip Unit: Thermomagnetic
- Auxiliary Contacts: 1NO-1NC
- Enclosure Type: IP20
- Frequency: 50/60 Hz
- Connection Type: Screw Terminals
- Power Rating: 39 kW
Specifications
- Part Number: 3RV20214FA15
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
- Type : 3RV
- Voltage : 690 690
Product Data
- UPC : 662643924541
- Country of Origin : Germany
- Dimensions : 4.016 x 1.929 x 4.016 inch
- Weight : 0.877 lb
