Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV20211EA10

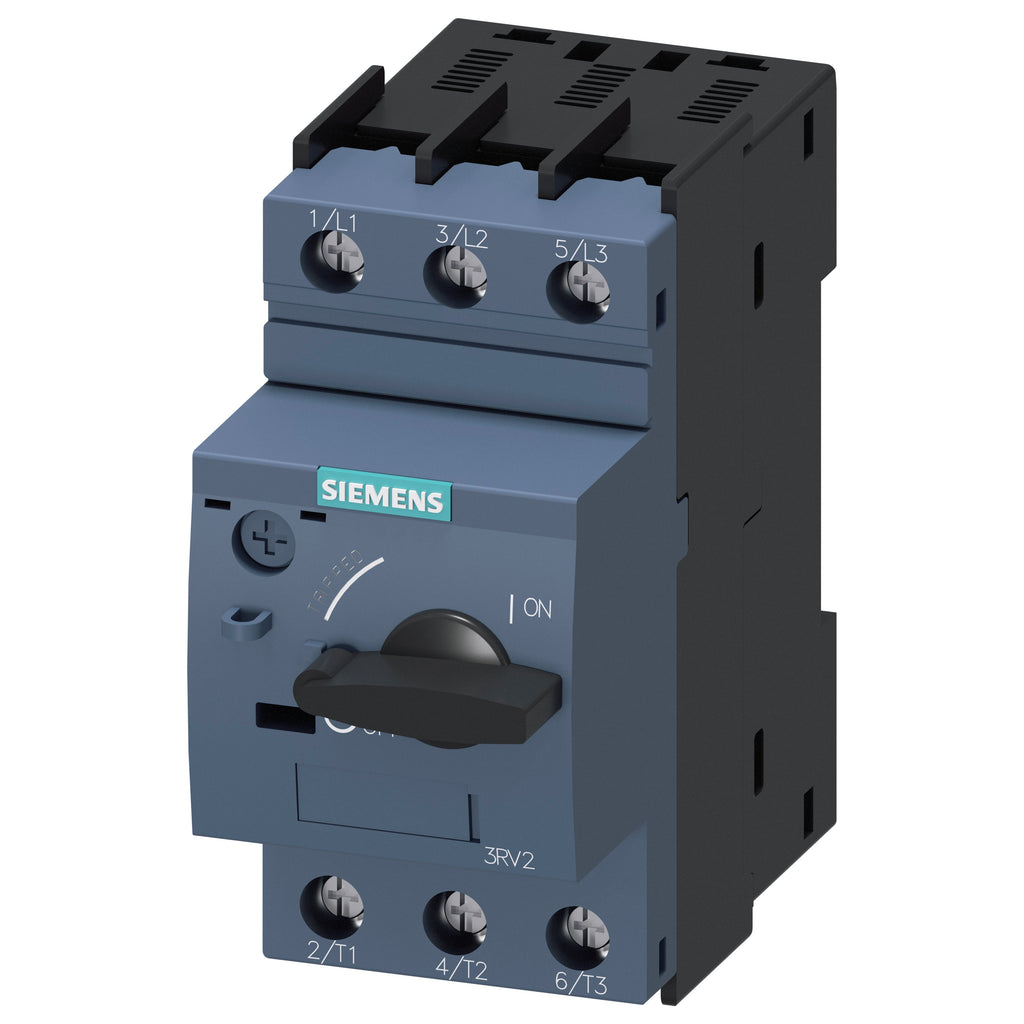

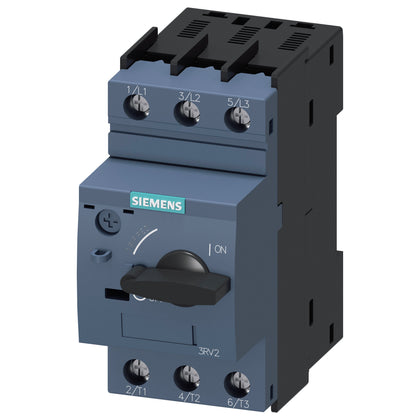

3RV20211EA10 is a Siemens SIRIUS 3RV2 motor protection circuit breaker designed for reliable overload and short-circuit protection in three-phase applications.
This thermal/magnetic circuit breaker features a compact S0 frame, screw terminal connections, and DIN rail mounting for easy installation in control panels. It is engineered to minimize energy losses and reduce inherent power loss, helping to lower control cabinet temperatures and allowing for smaller air conditioning units. The device is suitable for use in environments with ambient temperatures from -20 to 60°C.
-
Key Specifications
- Amperage: 4A (adjustable 2.8 to 4A overload, 52A magnetic trip)
- Voltage: 690VAC
- Poles: 3
- Mounting Type: DIN Rail
- Interrupt Rating: 6kA
- Series/Frame: SIRIUS 3RV2, S0 Frame
- Trip Unit: Thermal/Magnetic (Class 10)
- Enclosure: IP20
- Frequency: 50/60Hz
- Connection: Screw terminal
- Wire Size: 16 to 12 AWG (overload), 14 to 8 AWG (magnetic)
- Dimensions: 97mm H x 45mm W x 96mm D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RV20211EA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
- Type : 3RV
- Voltage : 690 690
Product Data
- UPC : 004089294221
- GTIN : 00040892942217
- Country of Origin : Germany
- Dimensions : 4.016 x 1.929 x 4.016 inch
- Weight : 0.778
