Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2-021-1GA10

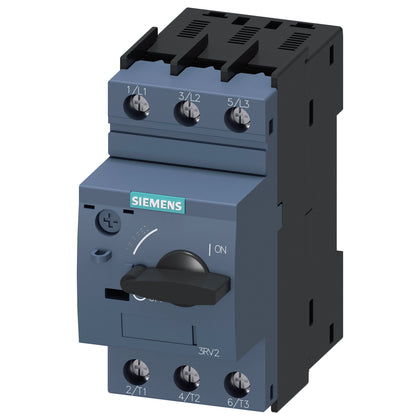

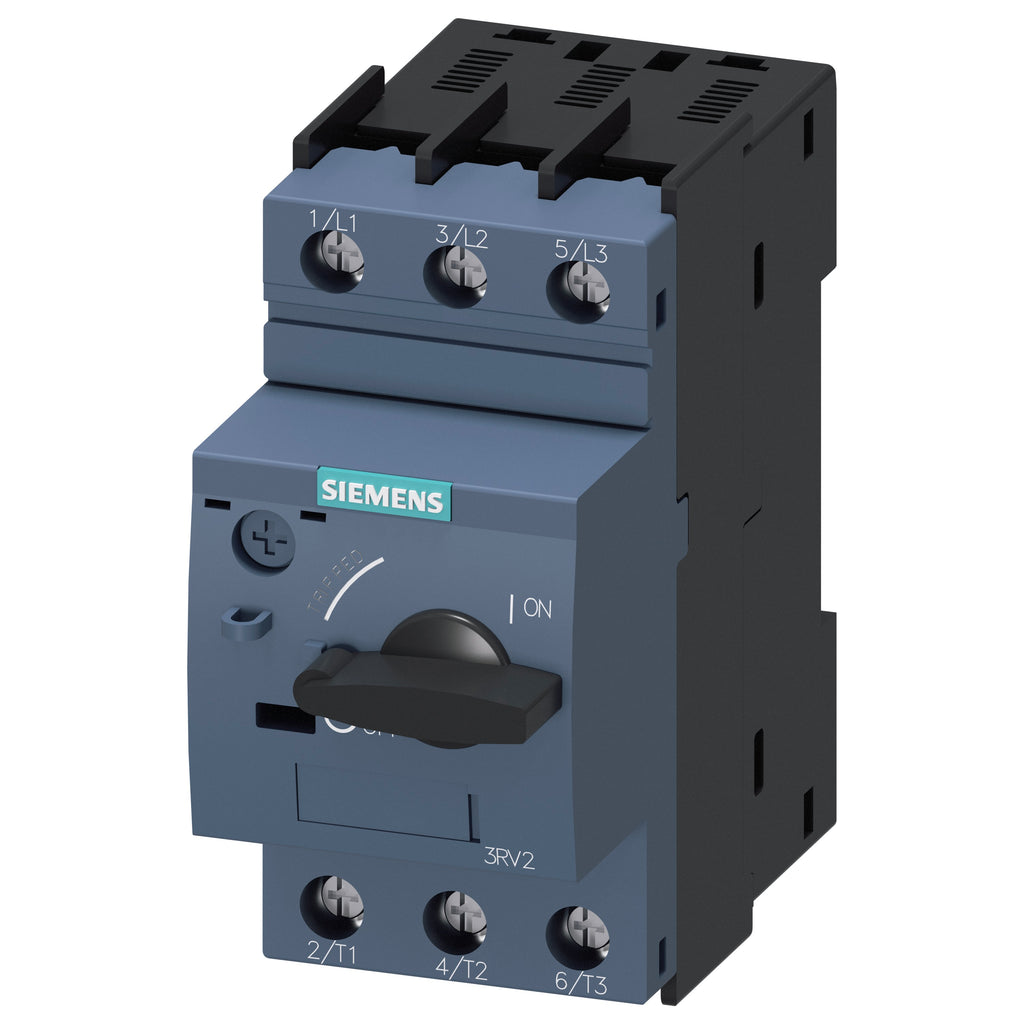

3RV2021-1GA10 is a Siemens SIRIUS 3RV2 motor protection circuit breaker designed for reliable overload and short-circuit protection in industrial applications. This device features a thermal magnetic trip unit and is built for easy integration into control panels and motor circuits. The 3RV2021-1GA10 offers a rated current range of 4.5 to 6.3 A, a maximum voltage of 690 VAC, and a 6 kA interrupt rating. It is a 3-pole breaker with an S0 frame size, suitable for DIN rail mounting. The breaker is certified to UL 508 and IEC 60947-4-1 standards, ensuring compliance with international safety requirements.
- Part Number: 3RV2021-1GA10
- Manufacturer: Siemens
- Series/Frame: SIRIUS 3RV2, S0 Frame
- Rated Current: 4.5 to 6.3 A
- Rated Voltage: 690 VAC
- Poles: 3
- Interrupt Rating: 6 kA
- Mounting Type: DIN Rail
- Trip Unit: Thermal Magnetic
- Certifications: UL 508, IEC 60947-4-1
- Power Rating: 4 kW
- Frequency: 50/60 Hz
Specifications
- Part Number: 3RV2-021-1GA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
Product Data
- UPC : 066264392155
- GTIN : 00662643921557
- Weight : 2
