Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV20114AA15

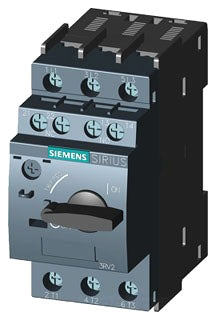

3RV20114AA15 is a Siemens SIRIUS motor protection circuit breaker designed for reliable motor control and protection.3RV20114AA15 features a 16 amp adjustable thermal-magnetic trip unit with a voltage rating of 690 VAC and a 3-pole configuration. It has a frame size of S00 and offers a 4 kA interrupt rating. The breaker supports screw terminal connections and includes 1NO-1NC auxiliary contacts. It is suitable for DIN rail, snap-on, or threaded mounting with an IP20 enclosure rating.
- Amperage: 10 to 16 A adjustable, 16 A nominal
- Voltage: 690 VAC
- Poles: 3
- Frame: S00
- Interrupt Rating: 4 kA at 690 VAC
- Trip Unit: Thermal-magnetic
- Auxiliary Contacts: 1NO-1NC
- Mounting: DIN rail, snap-on, threaded
- Enclosure Type: IP20
- Dimensions: 97 mm H x 45 mm W x 97 mm D
- Wire Size: 18 to 14 AWG
- Certifications: Standard Siemens motor protection certifications
Specifications
- Part Number: 3RV20114AA15
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
- Type : 3RV
- Voltage : 690 690
Product Data
- UPC : 662643924237
- Country of Origin : Germany
- Dimensions : 4.016 x 1.929 x 4.016 inch
- Weight : 0.816
