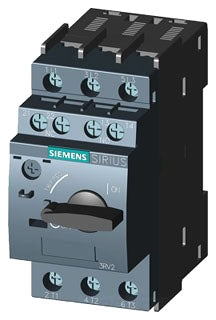

3RV20110HA15 - Siemens 0.8A 690VAC 3 Pole Motor Protection Circuit Breaker S00 Frame Thermal Magnetic Trip

3RV20110HA15

3RV20110HA15 is a Siemens motor protection circuit breaker designed for reliable protection in industrial motor applications. This device features a 0.8A current rating, 690VAC voltage rating, and 3 poles for robust circuit protection. It is built with a thermal magnetic trip unit and is suitable for DIN rail mounting, making it ideal for compact control panels. The breaker offers a 100 kA interrupt rating and is rated for IP20 enclosure protection. This Siemens 3RV20110HA15 motor protection circuit breaker is part of the S00 frame series and is engineered for high durability and long service life. It features a Class 10 trip curve, standard switching capacity, and a transverse auxiliary switch for added control. The device is suitable for ambient temperatures from -20 to 60°C and can be mounted on a 35 mm DIN rail. The breaker is designed for screw terminal connections and supports wire sizes from 18 to 14 AWG and 12 AWG.

• Part Number: 3RV20110HA15
• Manufacturer: Siemens
• Amperage Rating: 0.8 A
• Voltage Rating: 690 VAC
• Number of Poles: 3
• Interrupt Rating: 100 kA
• Series/Frame: S00
• Mounting Type: DIN Rail
• Enclosure Type: IP20
• Temperature Rating: -20 to 60°C
• Connection Type: Screw Terminal
• Wire Size: 18 to 14 AWG, 12 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RV20110HA15
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Type : 3RV
• Voltage : 690 690

Product Data

• UPC : 662643921649
• Country of Origin : Germany
• Dimensions : 4.016 x 1.929 x 4.016 inch
• Weight : 0.644 lb
