- Manufacturer:Siemens
- Sub-Category:Contactor And Motor Starter Auxiliary
Description
3RV1915-5A

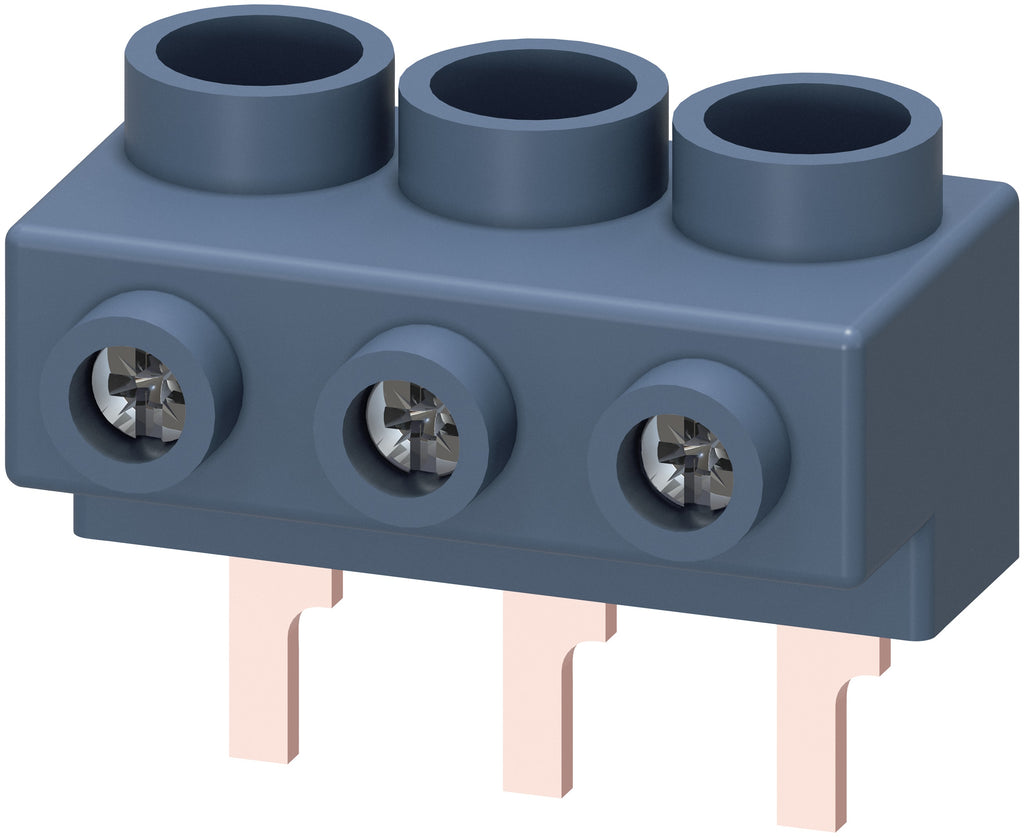

3RV1915-5A is a Siemens 3-phase supply terminal designed for motor control applications, compatible with S0 and S00 size circuit breakers.This line side terminal supports a maximum amperage of 63A and voltage up to 690V. It features screw-type terminals and pin-shaped top connections for easy integration with 3-phase busbars. The compact dimensions are 24 mm H x 44 mm W x 25 mm D. Certified to CSA, UL, CE, VDE, RoHS, EAC, and RMRS standards, it ensures reliable and safe operation in industrial environments.
- Key Specifications
- Amperage Rating: 63 A
- Voltage Rating: 690 V
- Phases: 3
- Connection Type: Screw/Pin terminals
- Compatible with: S0 and S00 size circuit breakers
- Mounting: Line side for busbar connection
- Dimensions: 24 mm H x 44 mm W x 25 mm D
- Certifications: CSA, UL, CE, VDE, RoHS, EAC, RMRS
- Wire Range: 12 to 4 AWG
- Product Family: Siemens SIRIUS
- Part Number: 3RV1915-5A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor And Motor Starter Auxiliary
- UPC : 075455440983
- GTIN : 00754554409832
- Weight : 0.09
