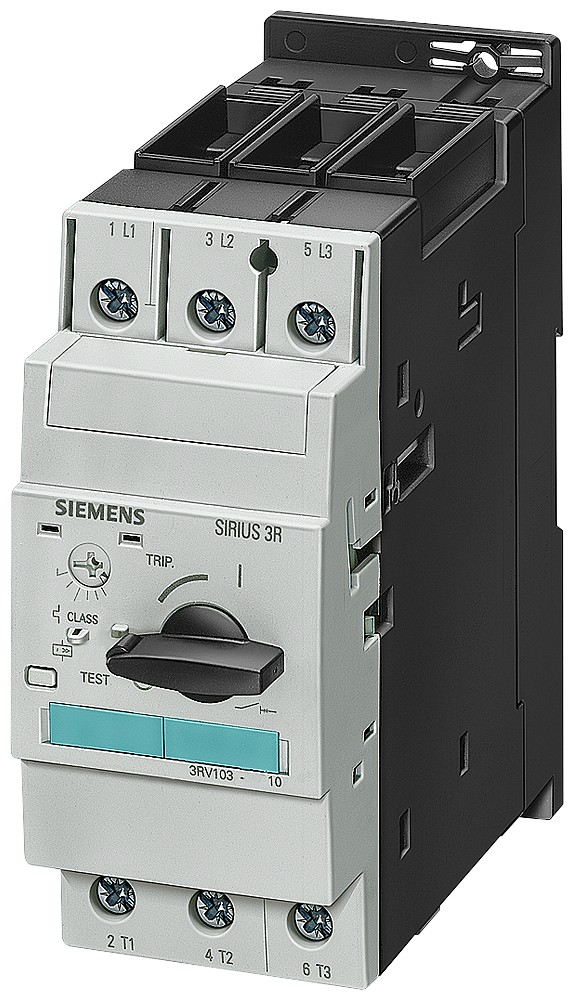

3RV1031-4EA10 - Siemens 22-32A 690V 3-Pole Motor Protection Circuit Breaker Class 10 Frame S2

3RV1031-4EA10

3RV1031-4EA10 is a Siemens motor protection circuit breaker designed for reliable motor control and protection with adjustable current settings.This Siemens 3-pole motor protector features a Class 10 thermal overload trip with an adjustable current range of 22 to 32 amps and a short-circuit trip rating of 416 amps. It supports motor voltages up to 690V AC and is built on the 3RV1/S2 frame with screw terminals. The device includes an on/off rotary handle with lockout and visible trip indication, phase loss sensitivity, and is suitable for 1 or 3-phase motors. It offers a 50 kA interrupt rating and is engineered for industrial durability with a temperature range from -20°C to +70°C.

Key Specifications
• Amperage: Adjustable 22-32 A
• Voltage: Up to 690 V AC
• Poles: 3
• Frame Size: S2 (3RV1 series)
• Trip Unit: Thermal/Magnetic, Class 10 overload
• Interrupt Rating: 416 A short-circuit, 50 kA breaking capacity
• Mounting Type: DIN rail
• Phase Loss Sensitive
• Operating Temperature: -20°C to +70°C
• On/Off rotary handle with lockout and trip indication
• Certifications: UL 508 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RV1031-4EA10
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Amperage : 32
• Nema Rating : 2

Product Data

• UPC : 754554409351
• GTIN : 4011209287037
• Weight : 2 lb
