Product Info
- Manufacturer:Siemens
Description
3RV10111CA10

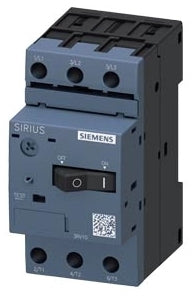

3RV10111CA10 is a Siemens SIRIUS 3RV1011 manual motor starter designed for motor protection with Class 10 trip characteristics and a 1.8-2.5A adjustable range. This compact 3-pole circuit breaker features screw terminals, DIN rail mounting, and a toggle actuator for reliable motor protection in industrial applications. It provides overload and short-circuit protection with a 33A magnetic trip and is suitable for use in group installations per NEC 430-53(C). The device is ambient temperature compensated and offers phase loss sensitivity for enhanced motor safety.
- Part Number: 3RV10111CA10
- Manufacturer: Siemens
- Series/Frame: SIRIUS S00
- Number of Poles: 3
- Rated Current: 1.8-2.5A (adjustable)
- Rated Voltage: 690VAC
- Mounting Type: DIN Rail (35mm)
- Interrupt Rating: 33A
- Trip Unit: Class 10 Thermal-Magnetic
- Actuator Type: Toggle
- Terminal Type: Screw
- Certifications: UL, CSA, CE
Specifications
- Part Number: 3RV10111CA10
- Manufacturer : Siemens
- Brand : Siemens
Product Data
- UPC : 754554408927
- GTIN : 4011209263543
- Country of Origin : Germany
- Dimensions : 3.937 x 1.929 x 3.307 inch
- Weight : 0.6 lb
