Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

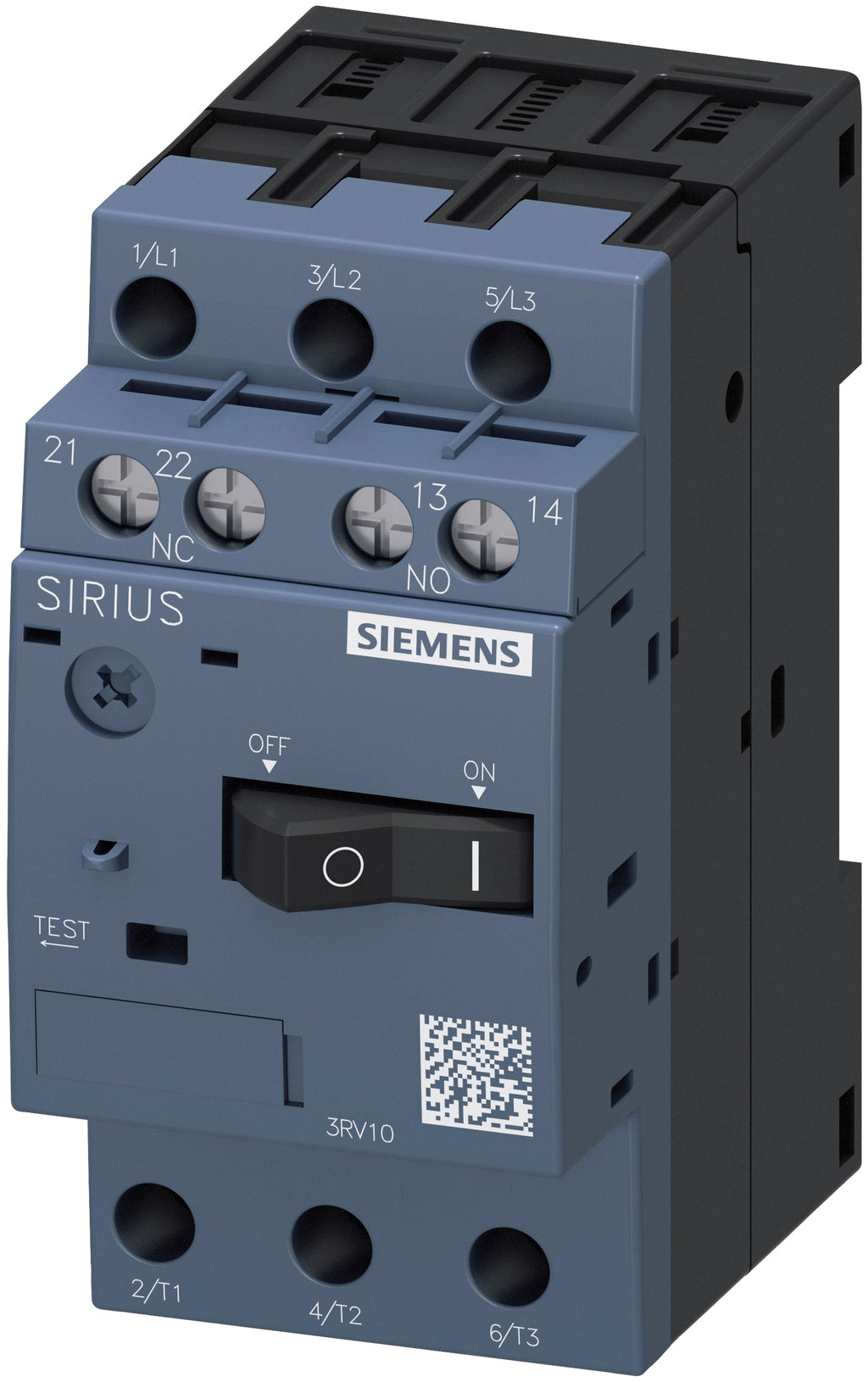

3RV1011-1KA15
3RV1011-1KA15 is a Siemens motor protection circuit breaker with a 12.5 ampere rating and 3 poles designed for reliable motor control and protection.3RV1011-1KA15 features a frame size S00, Class 10 thermal overload release, and a short-circuit release rated at 156 A. It includes a 1 NO + 1 NC transverse auxiliary switch with screw terminals for easy integration. The breaker supports voltages up to 690 VAC and is suitable for motor protection applications requiring precise overload and short-circuit protection.
- Key Specifications
- Amperage: 12.5 A
- Voltage Rating: 690 VAC
- Poles: 3
- Frame Size: S00
- Thermal Overload Release: Class 10
- Short-Circuit Release: 156 A
- Auxiliary Switch: 1 NO + 1 NC Transverse
- Mounting Type: Screw Terminal
- Interrupt Rating: Up to 100 kA (typical for frame S00)
- Application: Motor Protection
Specifications
- Part Number: 3RV1011-1KA15
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- UPC : 75455497141
- GTIN : 00754554971414
- Country of Origin : Germany
- Weight : 0.638
