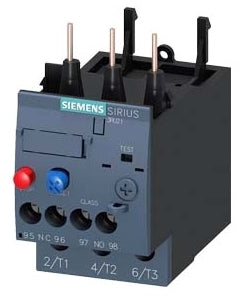

3RU21264PB0 - Siemens 30-36A 690V 3-Pole Thermal Overload Relay Class 10 Size S0 Direct Mount

3RU21264PB0

3RU21264PB0 is a Siemens thermal overload relay designed for motor protection with adjustable current settings from 30 to 36 amperes and a maximum voltage rating of 690V AC.This overload relay features a 3-pole configuration, Class 10 trip unit, and is sized S0 for direct mounting onto Siemens SIRIUS contactors. It includes 1 normally open and 1 normally closed auxiliary contact, screw terminal connections for both main and auxiliary circuits, and supports manual and automatic reset. The relay provides thermal overload and phase failure protection with a contact rating suitable for control circuits. It is built to IEC standards and offers reliable motor protection in industrial applications.

Key Specifications
• Amperage Range: 30 to 36 A adjustable
• Voltage Rating: 690V AC max
• Number of Poles: 3
• Trip Class: 10
• Mounting Type: Direct mount to contactor
• Frame Size: S0
• Auxiliary Contacts: 1 NO, 1 NC
• Terminal Connection: Screw terminals
• Reset Type: Manual and automatic
• Contact Rating: Various AC/DC control voltages
• Protection Type: Thermal overload and phase failure
• Standards: IEC compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RU21264PB0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Sirius
• Type : 3RU21
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 36
• Amperage Minimum : 30

Product Data

• UPC : 662643919523
• GTIN : 00662643919523
• Country of Origin : Germany
• Dimensions : 4.016 x 1.929 x 4.016 inch
• Weight : 0.445
• Certification : REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
