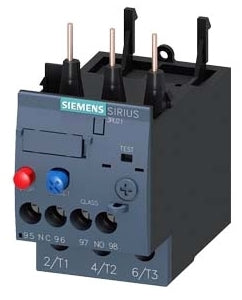

3RU21264DB0 - Siemens 25A 690V 3-Pole Thermal Overload Relay Contactor Mount Frame S0

3RU21264DB0

3RU21264DB0 is a Siemens thermal overload relay designed for motor protection with a 25 amp rating and 690 volt capacity, suitable for contactor mounting.This thermal overload relay provides inverse time delayed protection against overload and phase failure for 3-phase AC motors. It features a trip class 10 thermal overload release, screw-type terminals for main and auxiliary circuits, and a compact Frame S0 design. The relay includes 1 normally open and 1 normally closed auxiliary contact, supports manual and automatic reset, and is rotatable and tiltable for flexible mounting on contactors. It is UL and CSA rated with a contact rating of up to 690 V AC and is suitable for use with frequency converters.

Key Specifications
• Rated Current: 25 A
• Rated Voltage: 690 V AC
• Number of Poles: 3
• Mounting Type: Contactor Mounting
• Frame Size: S0
• Trip Class: 10
• Auxiliary Contacts: 1 NO + 1 NC
• Connection Type: Screw Terminals
• Contact Rating: B600 / R300
• Reset Type: Manual and Automatic
• Dimensions (HxWxD): 85 x 45 x 85 mm
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RU21264DB0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Sirius
• Type : 3RU21
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 25
• Amperage Minimum : 20

Product Data

• UPC : 662643919325
• GTIN : 00662643919325
• Country of Origin : Germany
• Dimensions : 4.016 x 1.929 x 4.016 inch
• Weight : 0.412
• Certification : REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
