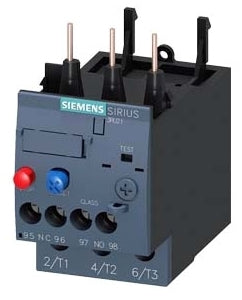

3RU21261DB0 - Siemens 2.2-3.2A 690V 3-Pole Thermal Overload Relay S0 Frame Contactor Mount

3RU21261DB0

3RU21261DB0 is a Siemens thermal overload relay designed for motor protection with a 2.2 to 3.2 ampere range and 690 V AC rating.3RU21261DB0 provides reliable overload and phase failure protection for three-phase and single-phase AC/DC motors. It features manual and automatic reset, a switch position indicator, and test function. The relay mounts directly on contactors with screw terminals for both main and auxiliary circuits. It is rated Class 10 with a Size S0 frame and suitable for panel mounting.

• Amperage range: 2.2 to 3.2 A
• Voltage rating: 690 V AC
• Poles: 3
• Mounting type: Contactor mount, panel mount
• Trip class: 10
• Frame size: S0
• Contact configuration: 1NO-1NC (1 Form A/1 Form B)
• Connection type: Screw terminals
• Operating temperature: -40 to 60 °C
• IP rating: IP20 enclosure
• Auxiliary contact ratings: 3 A at 24/110/120/125 VAC, 2 A at 230 VAC, 1 A at 400 VAC
• Reset: Manual and automatic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RU21261DB0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Sirius
• Type : 3RU21
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 3.2
• Amperage Minimum : 2.2

Product Data

• UPC : 662643918984
• GTIN : 00662643918984
• Country of Origin : Germany
• Dimensions : 4.016 x 1.929 x 4.016 inch
• Weight : 0.41
• Certification : REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
