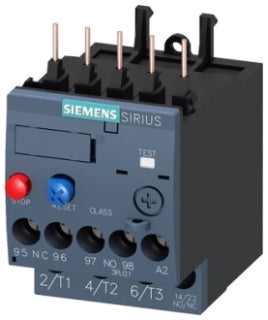

3RU21161GB0 - Siemens 4.5-6.3A 690VAC 3-Pole Thermal Overload Relay Size S00 Class 10 Contactor Mounting

3RU21161GB0

3RU21161GB0 is a Siemens SIRIUS thermal overload relay designed for motor protection with a current range of 4.5 to 6.3 amps and 690 VAC coil voltage.

This thermal overload relay features a 3-pole design, Class 10 trip unit, and is sized S00 for contactor mounting. It has screw-type terminals for both main and auxiliary circuits, supports manual and automatic reset, and includes 1NC-1NO contact configuration. The relay is rated for use with AC and DC motors, with auxiliary contact ratings up to 3 A at 125 VAC and 2 A at 24 VDC. It is certified by CCC, CE, CSA, and EAC, and operates reliably in temperatures from -40 to 60 degrees Celsius.

Key Specifications
• Amperage Range: 4.5 to 6.3 A
• Voltage Rating: 690 VAC coil voltage
• Poles: 3-pole
• Mounting Type: Contactor mounting
• Trip Class: 10 (thermal)
• Terminal Type: Screw terminals for main and auxiliary circuits
• Contact Configuration: 1NC-1NO
• Auxiliary Contact Ratings: Up to 3 A at 125 VAC, 2 A at 24 VDC
• Size/Frame: S00
• Operating Temperature: -40 to 60 °C
• Certifications: CCC, CE, CSA, EAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RU21161GB0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Heater Element
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Draw-Out
• Functions : LIG - Long-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 662643920390
• GTIN : 662643920390
• Country of Origin : Germany
• Dimensions : 4.016 x 1.929 x 3.307 inch
• Weight : 0.335 lb
• Certification : REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
