Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RU21161EB0

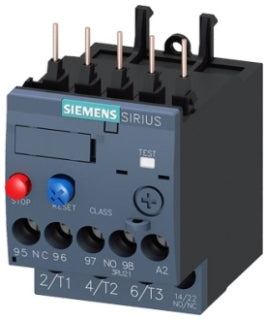

3RU21161EB0 is a Siemens SIRIUS thermal overload relay designed for motor protection with adjustable current settings from 2.8 to 4 amps.This thermal overload relay features a 3-pole design, 690 VAC rated voltage, and is suitable for mounting on S00 size contactors with screw terminals. It includes 1 normally closed (NC) and 1 normally open (NO) auxiliary contact, offers class 10 trip unit protection, and operates reliably within a temperature range of -40 to 60 degrees Celsius. The device has an IP20 protection rating and complies with relevant industrial standards.
- Amperage range: 2.8 to 4 A
- Rated voltage: 690 VAC
- Number of poles: 3
- Mounting type: Contactor mounting (S00 frame)
- Contact form: 1 NC, 1 NO
- Trip class: 10
- Terminal type: Screw terminals (main and auxiliary circuits)
- Operating frequency: 50-60 Hz
- Protection class: IP20
- Operating temperature: -40 to 60 °C
- Dimensions: 76 mm H x 45 mm W x 70 mm D
Specifications
- Part Number: 3RU21161EB0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Overload relay
Product Data
- UPC : 066264392029
- GTIN : 00662643920291
- Country of Origin : Germany
- Dimensions : 4.016 x 1.929 x 3.307 inch
- Weight : 0.328 lb
- Certification : REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
