Product Info
- Manufacturer:Siemens
Description
3RT29265AG21

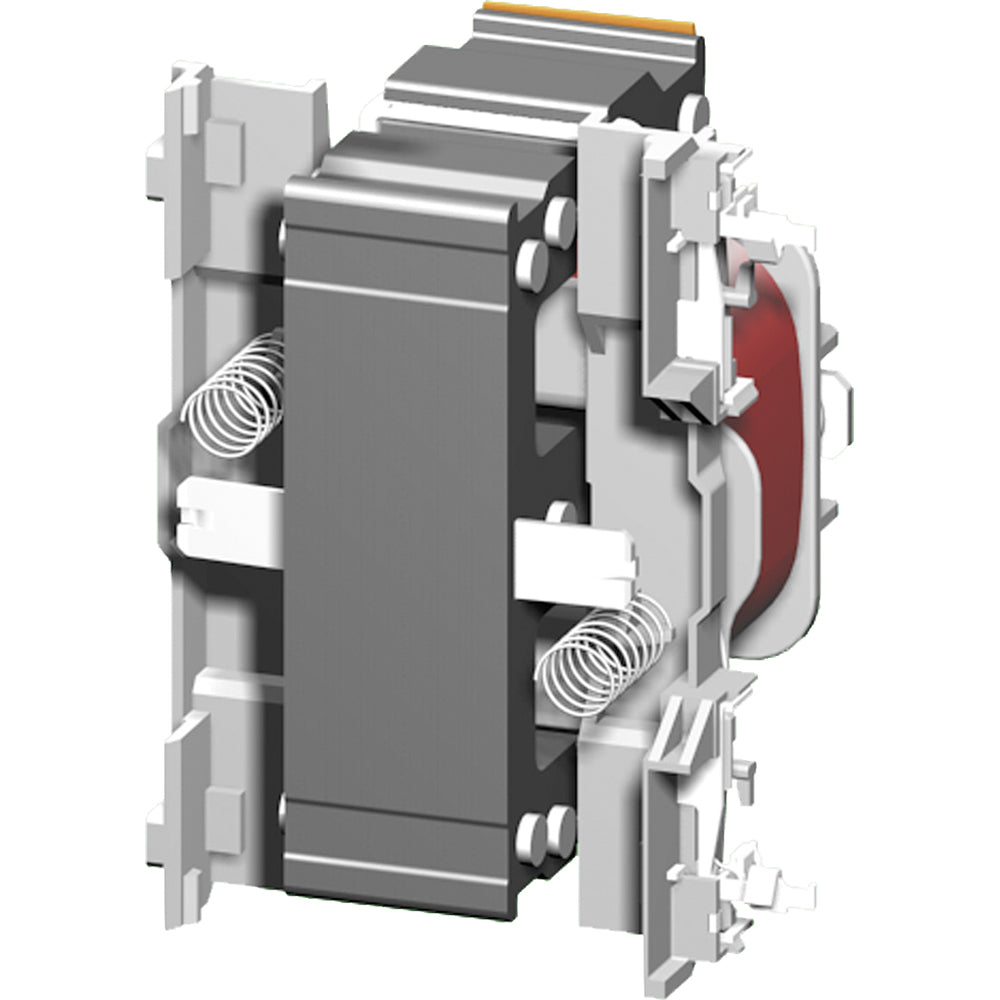

3RT29265AG21 is a magnetic coil designed for Siemens 3RT202 contactors, providing reliable operation at 110VAC, 50/60 Hz. This coil is compatible with Siemens SIRIUS contactors including 3RT2325-.A, 3RT2.26-.A, 3RT2.27-.A, and 3RT2028-.A, and is suitable for motor control applications up to 18.5 kW. The coil features a screw terminal connection and is built for durability in industrial environments.
- Manufacturer: Siemens
- Part Number: 3RT29265AG21
- Type: Magnetic Coil
- Control Voltage: 110VAC, 50/60 Hz
- Power Loss: 10.5 VA typical
- Compatible Contactors: 3RT202, 3RT2325-.A, 3RT2.26-.A, 3RT2.27-.A, 3RT2028-.A
- Mounting Type: Screw Terminal
- Application: Motor Contactors, Size S0
- Operating Range: 0.8 to 1.1 x rated voltage (50 Hz), 0.85 to 1.1 x rated voltage (60 Hz)
- Apparent Pick-Up Power: 77 VA (50 Hz), 87 VA (60 Hz)
- Apparent Holding Power: 9.8 VA (50 Hz), 87 VA (60 Hz)
- Weight: 0.085 kg
Specifications
- Part Number: 3RT29265AG21
- Brand : Siemens
Product Data
- UPC : 66264392104
- GTIN : 00662643921045
- Weight : 0.22
