- Manufacturer:Siemens
- Sub-Category:Switch part or accessory
Description
3RT29263AF31

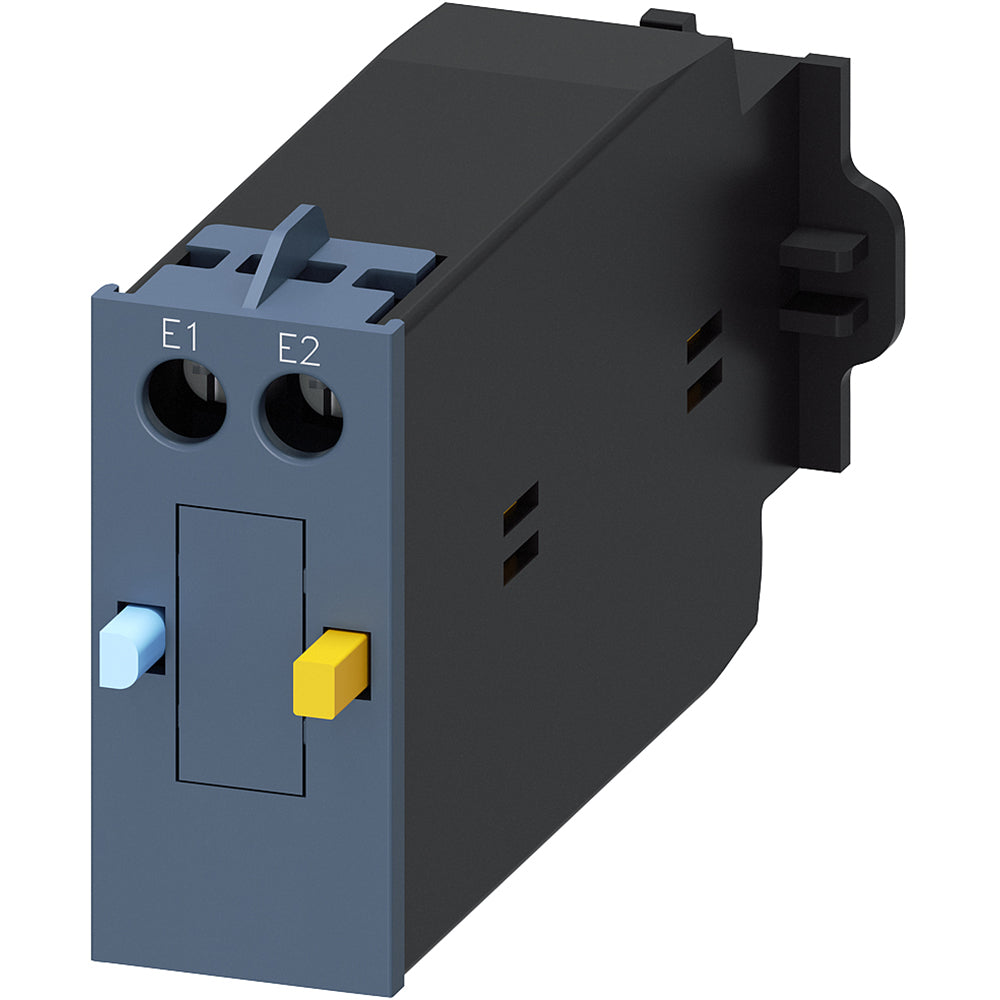

3RT29263AF31 is a Siemens mechanical latching block designed for use with S0 size motor contactors such as 3RT202, 3RT232, and 3RT252 series.
This mechanical latch operates at 110 V AC/DC control supply voltage, providing reliable retention of the contactor's energized state even after power interruptions. It features a compact design with dimensions 48.4 mm H x 34.8 mm W x 94.8 mm D, an insulation voltage rating of 300 VAC, and an IP20 protection class. The device uses screw terminals and supports an operating temperature range from -25 to 60 degrees Celsius. It is manufactured in Germany and complies with Siemens quality standards.
- Key Specifications
- Control Supply Voltage: 110 V AC/DC
- Contactor Size: S0
- Compatible Contactors: 3RT202, 3RT232, 3RT252 series
- Insulation Voltage: 300 VAC
- Protection Class: IP20
- Mounting Type: Mechanical Latching Block
- Dimensions: 48.4 mm H x 34.8 mm W x 94.8 mm D
- Operating Temperature: -25 to 60 °C
- Storage Temperature: -50 to 80 °C
- Connection Type: Screw Terminal
- Country of Origin: Germany
- Part Number: 3RT29263AF31
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Switch part or accessory
- UPC : 662643920888
- Country of Origin : Germany
- Dimensions : 2.028 x 1.969 x 3.898 inch
- Weight : 0.269 lb
