Description
3RT2627-1AP65

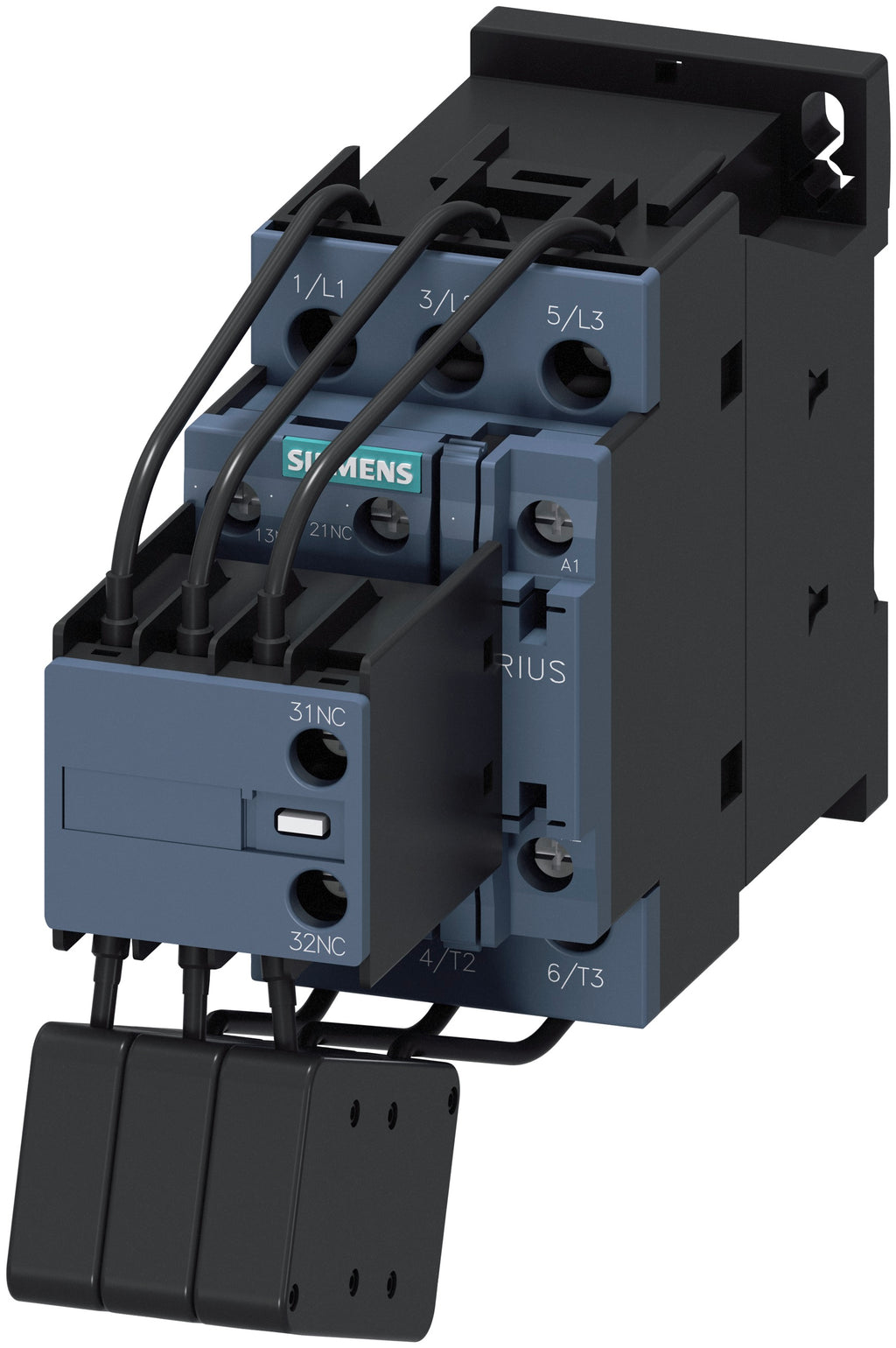

3RT2627-1AP65 is a Siemens 3-pole capacitor contactor designed for motor control applications with a 36 ampere rating and 690 VAC maximum voltage.This contactor features an AC-6b utilization category with a 25 kVAr capacitor switching capacity at 400 V. It operates on a control voltage of 220 V AC at 50 Hz or 240 V AC at 60 Hz. The device includes auxiliary contacts configured as 1 normally open (NO) and 2 normally closed (NC) contacts, and uses screw terminal connections. It is built on the S0 size frame and is suitable for reliable capacitor switching in industrial environments.
- Amperage: 36 A
- Voltage: Up to 690 VAC switching voltage
- Poles: 3-pole
- Mounting Type: Screw terminal
- Interrupt Rating: AC-6b, 25 kVAr at 400 V
- Series/Frame: S0 frame, 3RT26 Series
- Auxiliary Contacts: 1 NO + 2 NC
- Control Voltage: 220 V AC (50 Hz) / 240 V AC (60 Hz)
- Operating Temperature Range: -25°C to 60°C
- Certifications: Siemens industrial standards
Specifications
- Part Number: 3RT2627-1AP65
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
Product Data
- Weight : 1
