Description
3RT25361AK60

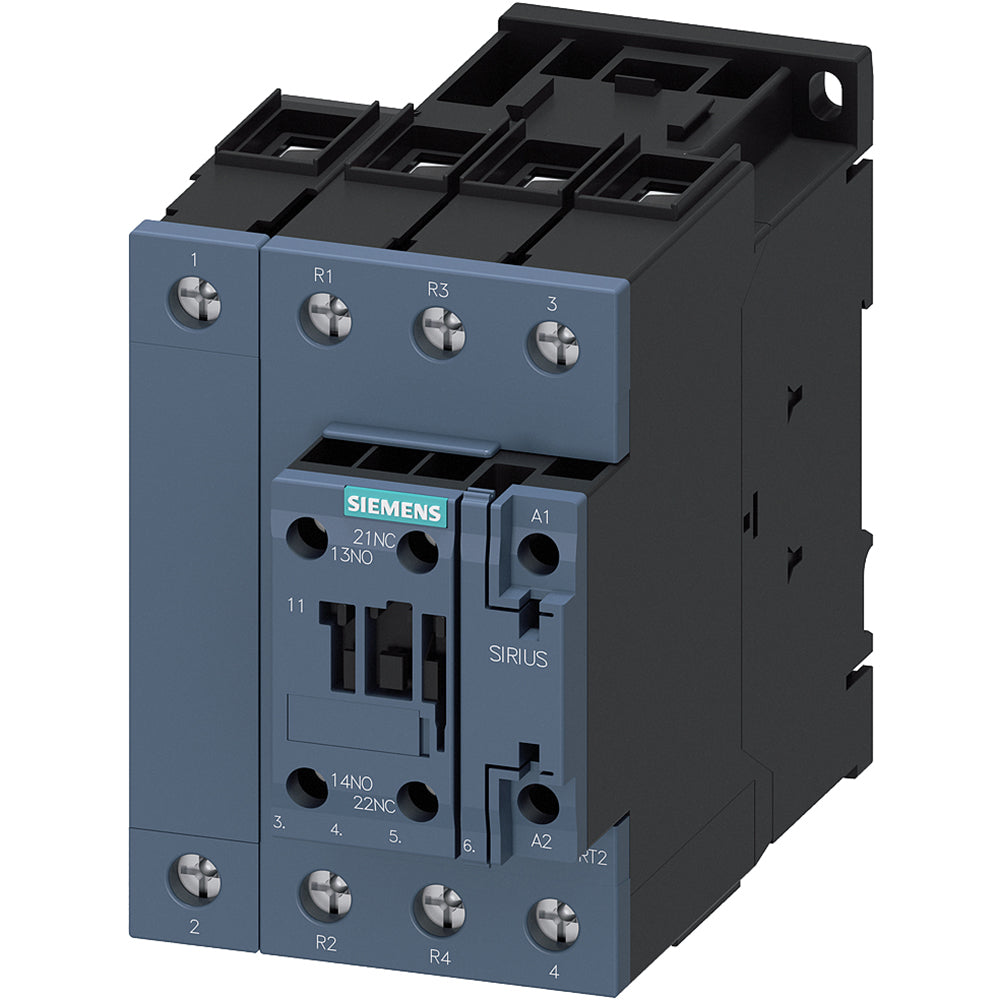

3RT25361AK60 is a Siemens 4-pole motor control contactor designed for reliable switching of motors up to 41 amps at 400 volts.This contactor features a 4-pole configuration with a rated operational current of 41 A at 400 V AC, suitable for 3-phase motor control applications. It supports motor power up to 22 kW at 400 V and includes auxiliary contacts for control circuit integration. The device is designed for DIN rail mounting with screw terminal connections and operates within a temperature range of -40°C to +70°C. It complies with IEC standards and is part of the Siemens SIRIUS series, size S2.
- Key Specifications
- Part Number: 3RT25361AK60
- Manufacturer: Siemens
- Poles: 4
- Rated Current: 41 A at 400 V AC
- Rated Motor Power: 22 kW at 400 V
- Mounting Type: DIN Rail Mount
- Terminal Type: Screw Terminal
- Operating Temperature: -40°C to +70°C
- Series/Frame: Siemens SIRIUS Size S2
- Coil Voltage: 110/120 V AC
- Auxiliary Contacts: Yes (1NO-1NC)
- Standards: IEC Compliant
Specifications
- Part Number: 3RT25361AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 400
- Poles : 4
Product Data
- UPC : 804766230813
- GTIN : 00804766230813
- Country of Origin : Germany
- Dimensions : 5.669 x 4.843 x 3.268 inch
- Weight : 2.487
