Description
3RT25171AK60

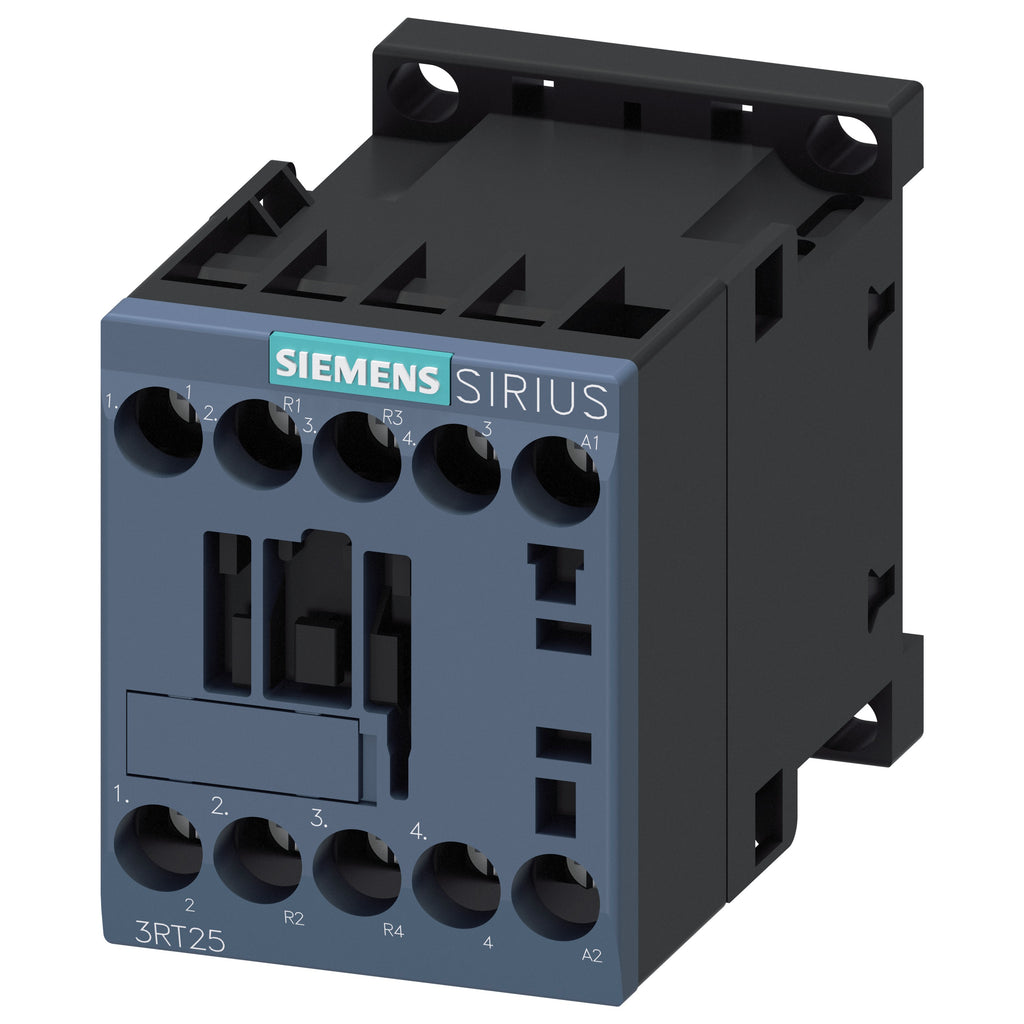

3RT25171AK60 is a Siemens SIRIUS IEC motor contactor designed for reliable switching of motor loads and control circuits. This 4-pole contactor features a 110/120V AC coil and is suitable for a wide range of industrial applications. The Siemens 3RT25171AK60 offers robust performance with a rated operational current of 12 A per NO contact and 9 A per NC contact at 400 V, AC-3 duty. It is built for durability with a 30,000,000 cycle life and operates in temperatures from -25 to 60 deg C. The unit is designed for rail, snap-on, or threaded mounting and features screw terminals for secure connections.
- 4-pole configuration
- 110/120V AC coil voltage
- 50/60 Hz frequency rating
- 12 A per NO contact, 9 A per NC contact at 400 V AC-3
- 30,000,000 operating cycles
- Operating temperature: -25 to 60 deg C
- S00 size
- Screw terminal
- Rail/snap-on/threaded mounting
- 2 NO + 2 NC auxiliary contacts
- Power factor: 0.25 closing, 0.77 holding
- Dimensions: 57.5 mm H x 45 mm W x 73 mm D
Specifications
- Part Number: 3RT25171AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
Product Data
- UPC : 662643916638
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.516 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
