Description
3RT25171AB00

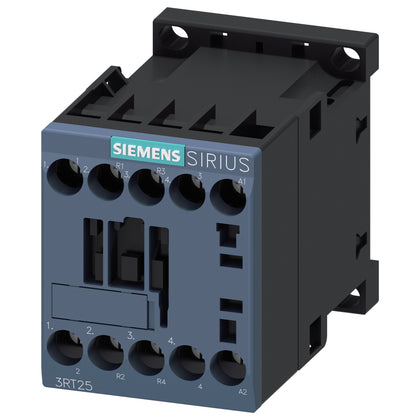

3RT25171AB00 is a Siemens SIRIUS IEC motor contactor designed for reliable switching and control of electric motors in industrial applications. This 4-pole contactor features a 24 VAC 50/60 Hz coil, 12 A AC-3 rating, and a compact S00 frame size. It offers 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, screw terminal connections, and is suitable for 35 mm DIN rail or vertical mounting. The device is built to IEC standards for robust performance in demanding environments.
- Manufacturer: Siemens
- Part Number: 3RT25171AB00
- Series/Frame: SIRIUS S00
- Amperage: 12 A AC-3
- Coil Voltage: 24 VAC 50/60 Hz
- Poles: 4
- Main Contacts: 2NO + 2NC
- Mounting Type: 35 mm DIN rail or vertical
- Terminal Type: Screw terminal
- Interrupt Rating: 690 VAC max
- Standards: IEC
- Operating Temperature: -25°C to 60°C
Specifications
- Part Number: 3RT25171AB00
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
Product Data
- UPC : 662643916614
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.507 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
