Description
3RT2327-2BG40

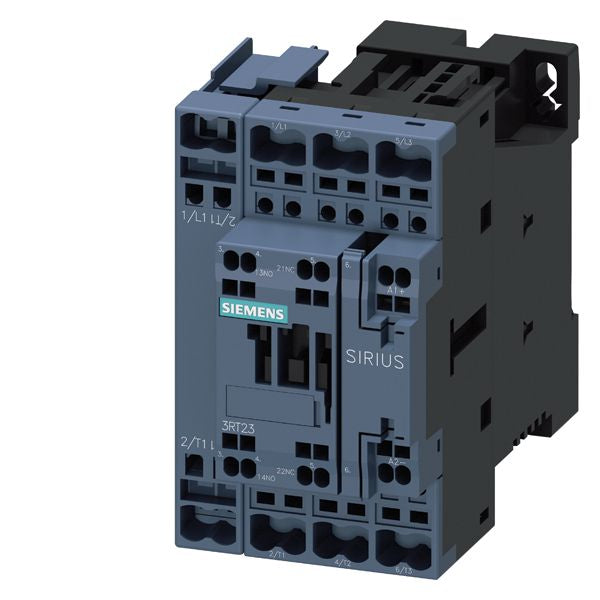

3RT2327-2BG40 is a Siemens SIRIUS power contactor designed for AC-1 switching applications with a 50A rating at 400V and 125V DC coil voltage. This 4-pole contactor features auxiliary contacts (1 NO + 1 NC) and is rated for operation at 40°C ambient temperature with a maximum switching voltage of 690VAC. The unit is housed in size S0 frame and equipped with spring-loaded terminals for secure connections.
- Manufacturer: Siemens
- Part Number: 3RT2327-2BG40
- Contactor Type: AC-1 Power Contactor
- Current Rating: 50A at 400V (AC-1); 15.5A at 400V (AC-3/AC-4)
- Coil Voltage: 125V DC
- Number of Poles: 4
- Auxiliary Contacts: 1 NO + 1 NC
- Frame Size: S0
- Terminal Type: Spring-Loaded
- Maximum Switching Voltage: 690VAC
- Operating Temperature Range: -25°C to 60°C
- Mounting: 35mm DIN Rail (Screw/Snap-On, Vertical)
Specifications
- Part Number: 3RT2327-2BG40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT23
- Voltage : 600
- Amperage : 42
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 125
Product Data
- UPC : 004089263501
- GTIN : 00040892635010
- Weight : 1
