Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT23251AK60

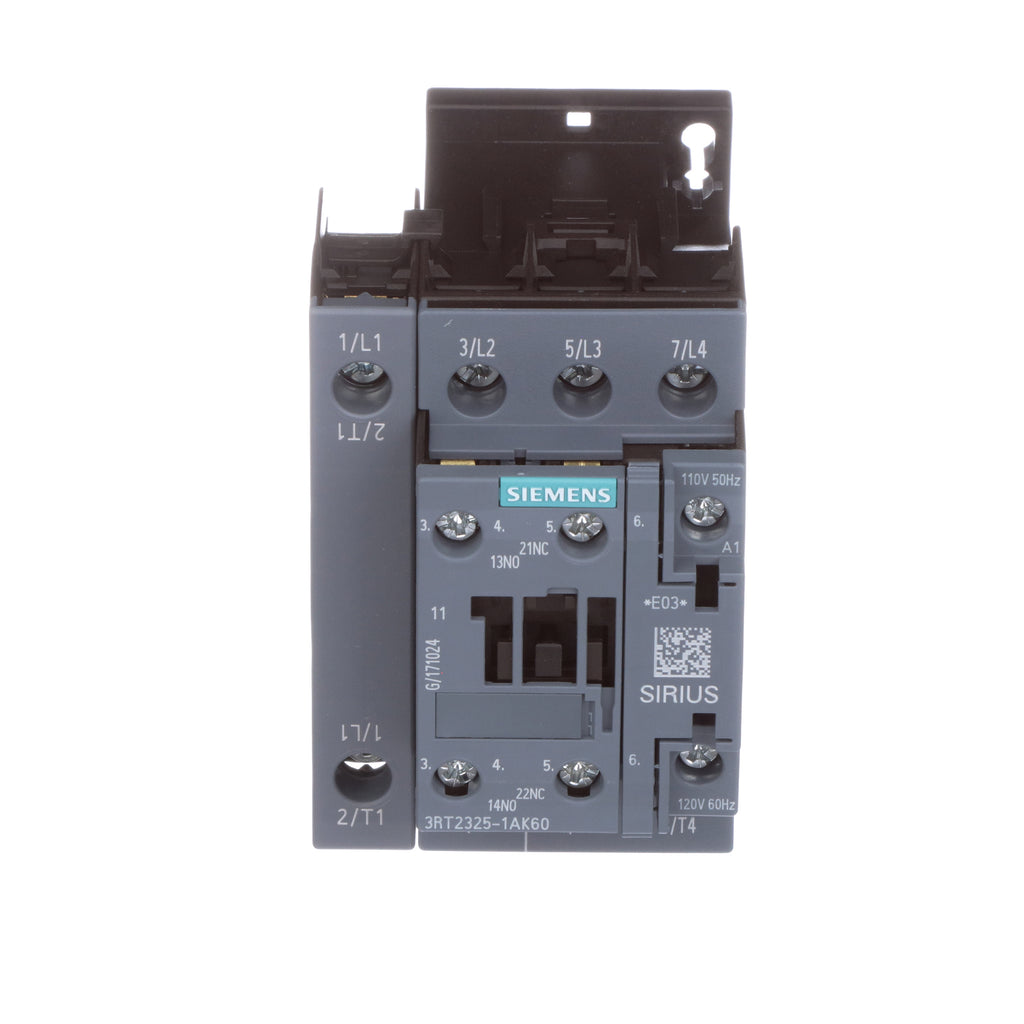

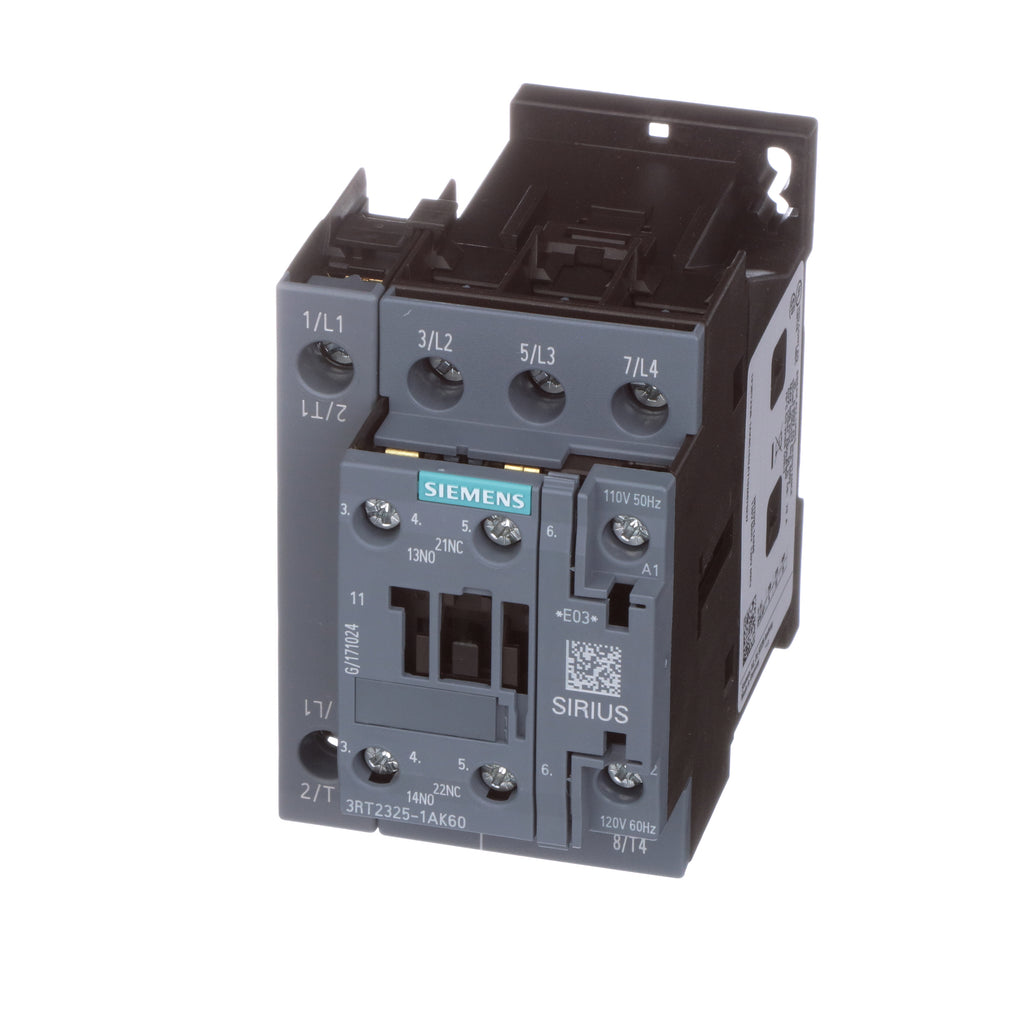

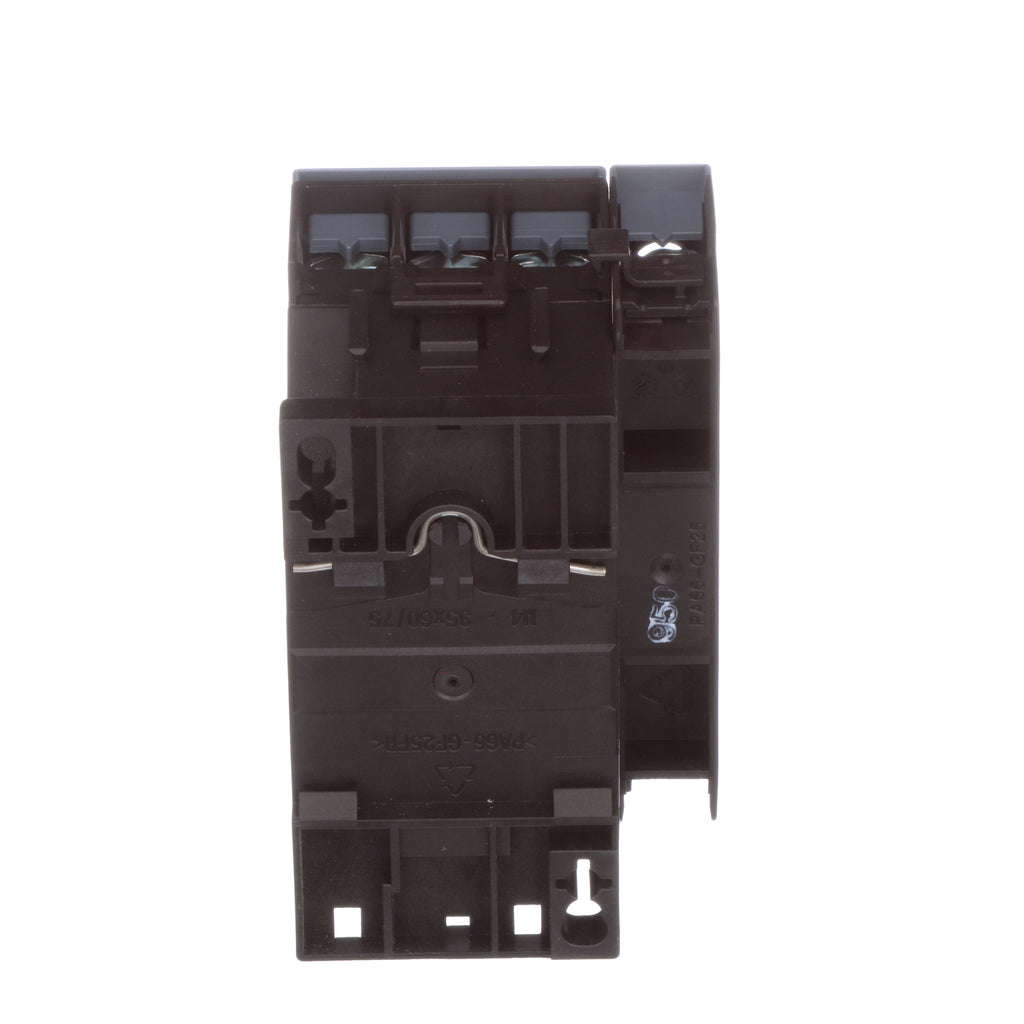

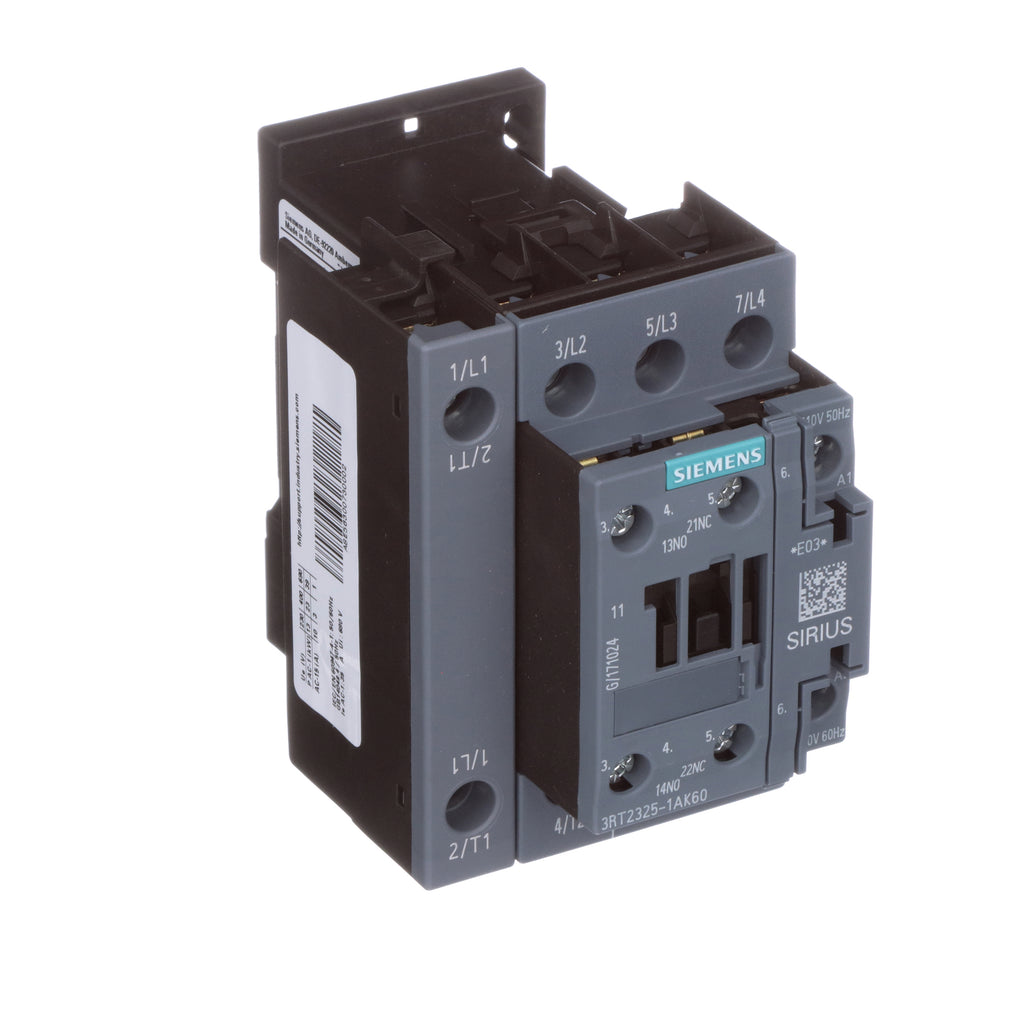

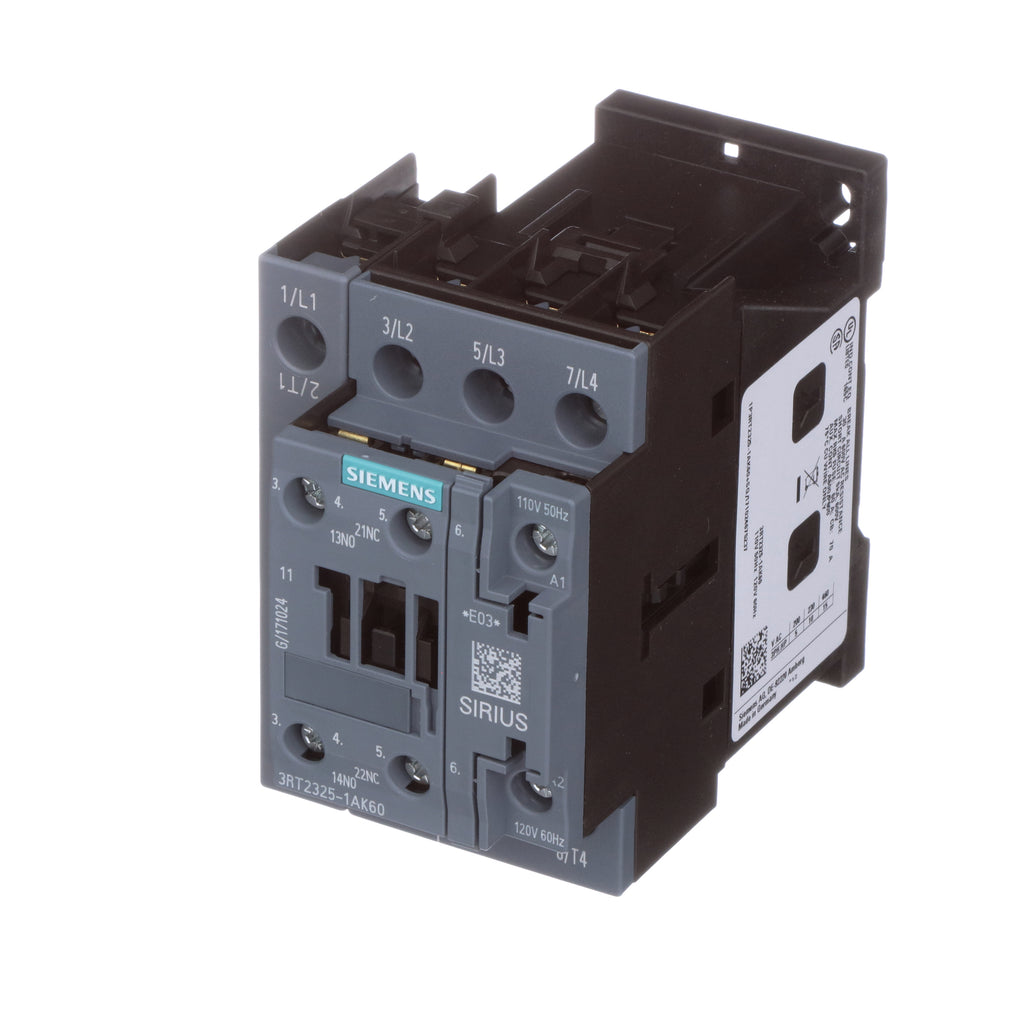

3RT23251AK60 is a Siemens 4-pole motor contactor designed for reliable motor switching applications.
This contactor features a 120V AC coil voltage with screw terminal connections and is rated for 35 amps at 690V AC (AC-1) and 15.5 amps at 400V AC (AC-3/AC-4). It includes auxiliary contacts with a contact configuration of 1 NO and 1 NC, suitable for IEC standard S0 frame mounting. The device supports switching voltages up to 690VAC and operates within a temperature range of -25°C to 60°C.
- Manufacturer: Siemens
- Part Number: 3RT23251AK60
- Poles: 4
- Amperage Rating: 35A (AC-1), 15.5A (AC-3/AC-4)
- Coil Voltage: 120V AC (60 Hz)
- Contact Configuration: 1 NO, 1 NC
- Connection Type: Screw Terminals
- Frame/Series: S0
- Max Switching Voltage: 690VAC
- Operating Temperature: -25°C to 60°C
- Degree of Protection: IP20
- Standards: RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT23251AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 004089263481
- GTIN : 00040892634815
- Country of Origin : Germany
- Dimensions : 3.661 x 3.031 x 5.118 inch
- Weight : 1.054 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
