Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT23171AK60

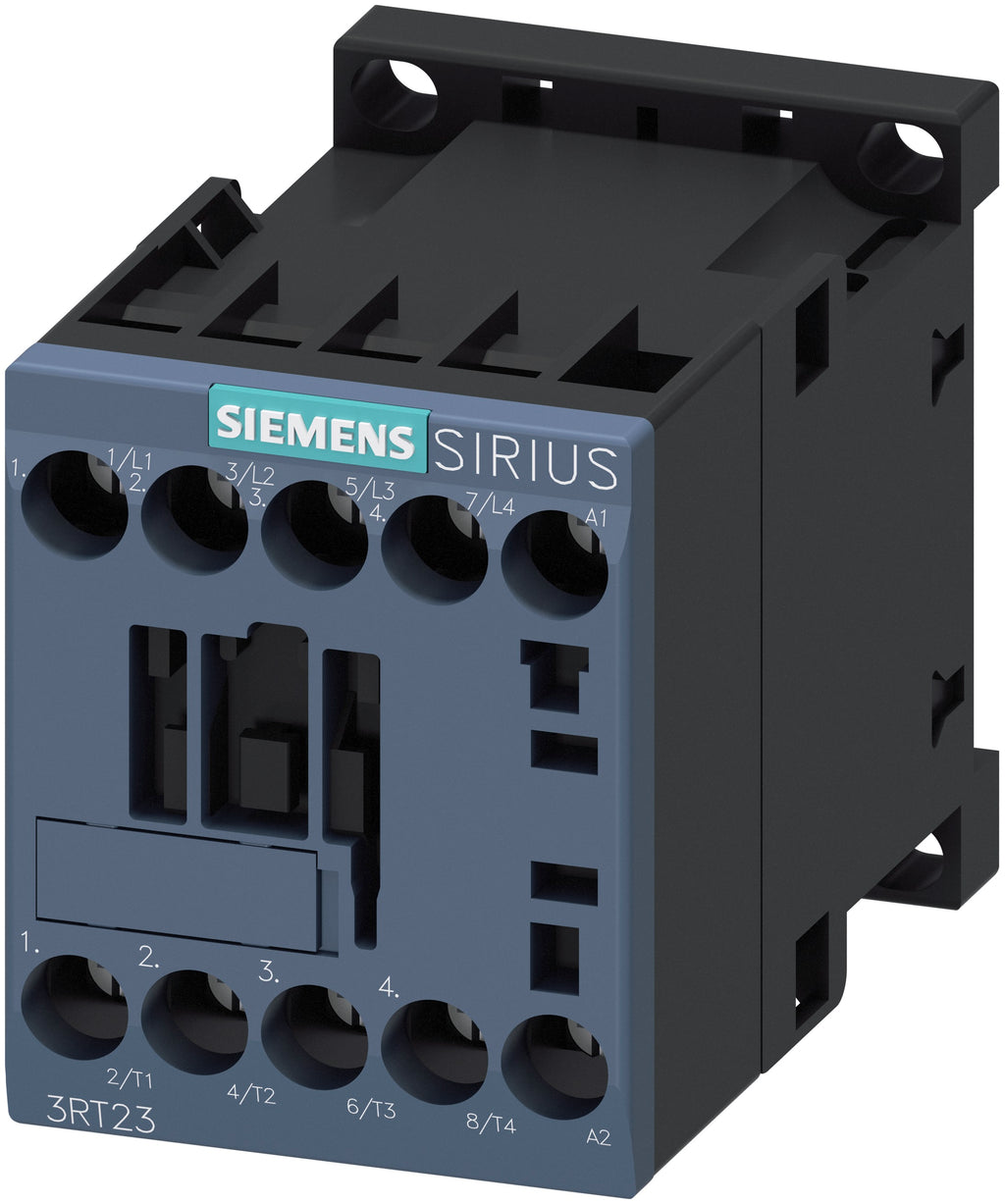

3RT23171AK60 is a Siemens IEC magnetic contactor designed for motor control applications with a 20 amp rating and 120V coil voltage.3RT23171AK60 features a 4-pole configuration in the S00 frame size, suitable for switching motors up to 690VAC max voltage. It includes screw terminal connections and auxiliary contacts, with protection class IP20 on front and terminals, and is rated for degree of pollution 3.
- Amperage: 20 Amp
- Coil Voltage: 120 V AC
- Poles: 4
- Frame/Series: S00
- Connection Type: Screw Terminals
- Max Switching Voltage: 690 VAC
- Protection Class: IP20 (front and terminals)
- Degree of Pollution: 3
- Operating Temperature: -25°C to 60°C
- Auxiliary Contacts: Included
- Application: Motor Switching
Specifications
- Part Number: 3RT23171AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
- Family : 3RT2
Product Data
- UPC : 004089263474
- GTIN : 00040892634747
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.518 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
