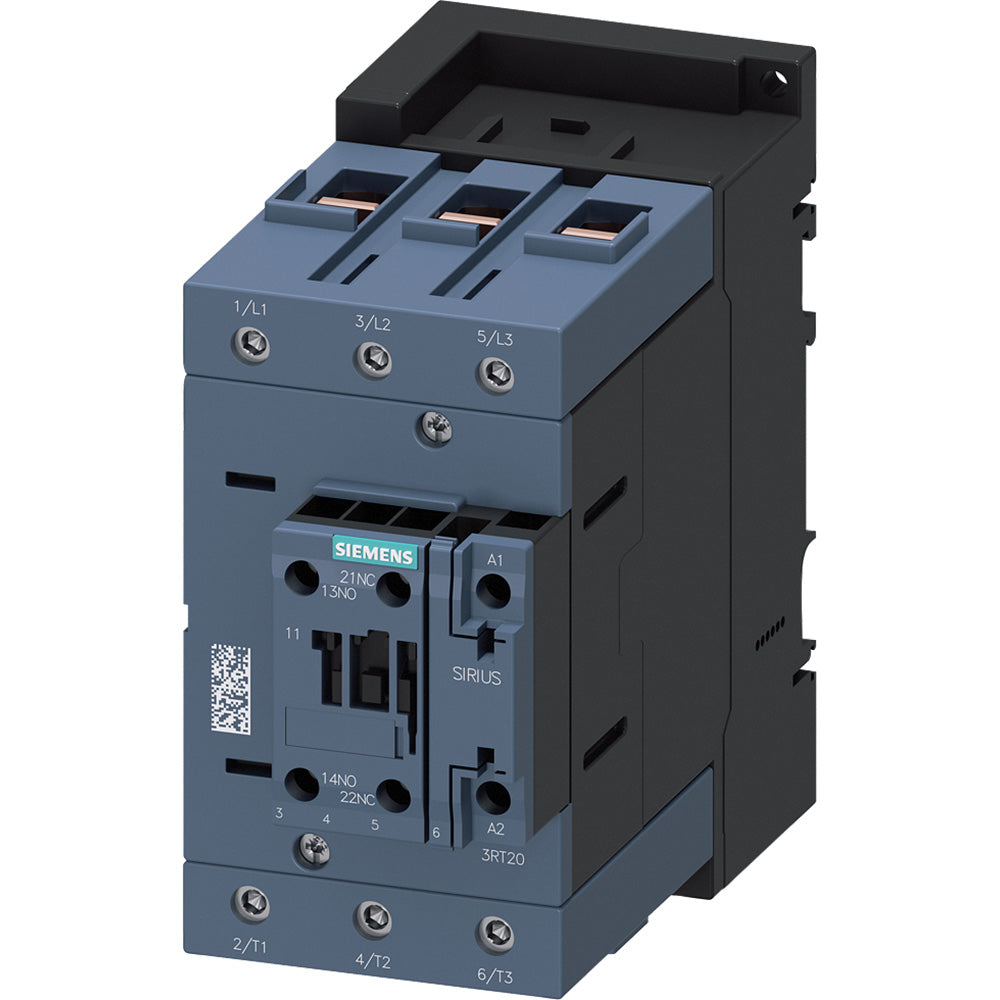

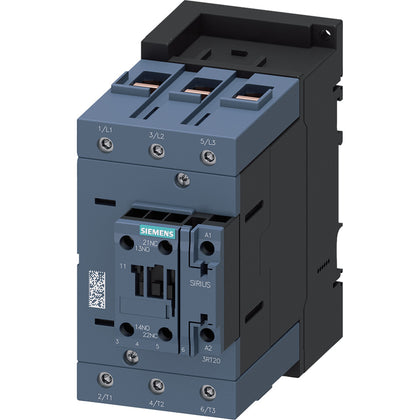

3RT20461AK600UA0 - Siemens 95A 110/120VAC 3-Pole Motor Contactor, 45kW, NEMA Size 3, Screw Terminal

3RT20461AK600UA0

3RT20461AK600UA0 is a Siemens 3-pole motor contactor designed for reliable motor control applications.This Siemens contactor features a 95 ampere rating with a 110/120 VAC coil voltage, suitable for 50/60 Hz operation, and supports up to 45 kW motor load at 400 V. It is built to NEMA Size 3 standards with screw terminal connections and surface mounting. The device includes 3 normally open main contacts and 1 normally open plus 1 normally closed auxiliary contacts, providing flexible control options. It operates efficiently with a power factor of approximately 0.62/0.55 and 0.36/0.4 for coil closing and holding, respectively. The contactor is rated for AC-3 utilization category and designed for industrial environments with IP00/IP20 enclosure ratings.

Key Specifications
• Rated Current: 95 A
• Coil Voltage: 110/120 VAC, 50/60 Hz
• Poles: 3
• Motor Power Rating: 45 kW at 400 V
• Contact Configuration: 3NO main contacts, 1NO + 1NC auxiliary contacts
• Mounting Type: Surface mount
• Terminal Type: Screw terminals
• NEMA Size: 3
• Enclosure Rating: IP00/IP20
• Operating Temperature: -25 to 60 °C
• Control Circuit Power Factor: 0.62/0.55 (closing), 0.36/0.4 (holding)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20461AK600UA0
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors

Product Data

• UPC : 804766407420
• Country of Origin : Germany
• Dimensions : 3.228 x 6.654 x 6.378 inch
• Weight : 3.792 lb
