3RT20451AK60 - Siemens Motor Control 80 A 110/120 V AC

3RT20451AK60

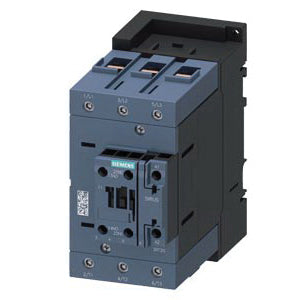

3RT20451AK60 is a Siemens power contactor for motor switching applications. This SIRIUS 3RT contactor is part of Siemens' 3-pole contactor line and is rated for AC-3e/AC-3 duty with 80 A and 37 kW at 400 V. It uses a screw terminal connection, has 1 NO + 1 NC auxiliary contacts, and a size S3 frame. Key Specifications

• Part Number: 3RT20451AK60
• Manufacturer: Siemens
• Product family: SIRIUS 3RT contactors, 3-pole, up to 250 kW
• Type: Power contactor
• Voltage: 110 V AC / 120 V AC
• Amperage: 80 A
• Phase: 3
• Poles: 3
• Functions: AC-3e/AC-3
• Connection: Screw terminal
• Auxiliary contacts: 1 NO + 1 NC
• Framesize: S3
• Full load amps min: 80 A
• Full load amps max: 80 A
• Horse power: 37 kW
• Frequency: 50 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20451AK60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors
• Family : SIRIUS 3RT contactors, 3-pole, up to 250 kW
• Type : Power contactor
• Voltage : 110-120 V
• Amperage : 80 A
• Phase : 3
• Poles : 3
• Connection : Screw terminal
• Functions : AC-3e/AC-3
• Frame Size : S3
• Temp Rating : -25 to 60 C
• Full Load Amp Minimum : 80 A
• Full Load Amp Maximum : 80 A
• Horse Power : 37 kW
• Aux Contacts : 1 NO + 1 NC
• Coil Voltage Maximum : 120 V
• Coil Voltage Minimum : 110 V
• Mounting : DIN Rail/Snap-On
• Hz : 50 Hz

Product Data

• UPC : 804766364518
• Country of Origin : Germany
• Dimensions : 6.575 x 6.339 x 3.189 inch
• Weight : 3.757
• Temp Rating : -25 to 60 C
• Certification : REACH Art 33, WEEE (2012/19/EU)
