Description
3RT20371AK60

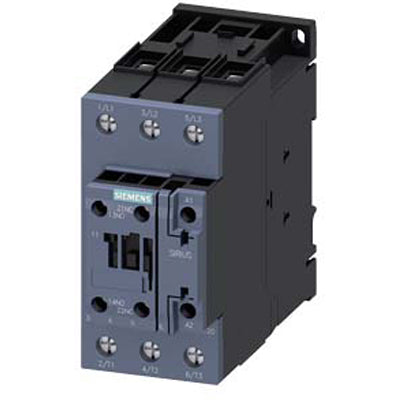

3RT20371AK60 is a Siemens 3-pole IEC contactor designed for reliable motor control in industrial applications.
This contactor features a robust S2 frame, screw terminal connections, and includes 1NO/1NC auxiliary contacts for flexible control circuit integration. It is rated for 65A at 120VAC, suitable for a wide range of motor loads, and offers both DIN rail and snap-on mounting options for easy installation. The unit is built to IEC standards, ensuring compatibility and safety in demanding environments.
Key Specifications
- Amperage: 65A
- Voltage: 120VAC (50/60 Hz)
- Poles: 3
- Mounting Type: DIN Rail/Snap-On/Threaded
- Interrupt Rating: A600/P600
- Series/Frame: 3RT2, S2
- Trip Unit: Not specified
- Certifications: IEC, IP20 (front)/IP00 (terminal)
- Auxiliary Contacts: 1NO/1NC
- Coil Power: 16.5/18.5/188/212 VA
- Operating Temperature: -25 to 60°C
- Dimensions: 114 mm H x 55 mm W x 130 mm D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT20371AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 690
- Amperage : 65
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Draw-Out
- Functions : LI - Long-Time and Instantaneous
- Coil Voltage Maximum : 120
- Protection : Solid State
Product Data
- UPC : 887621917272
- GTIN : 4011209940291
- Country of Origin : Germany
- Dimensions : 4.823 x 2.441 x 5.591 inch
- Weight : 2.176 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
