Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20361AK600UA0

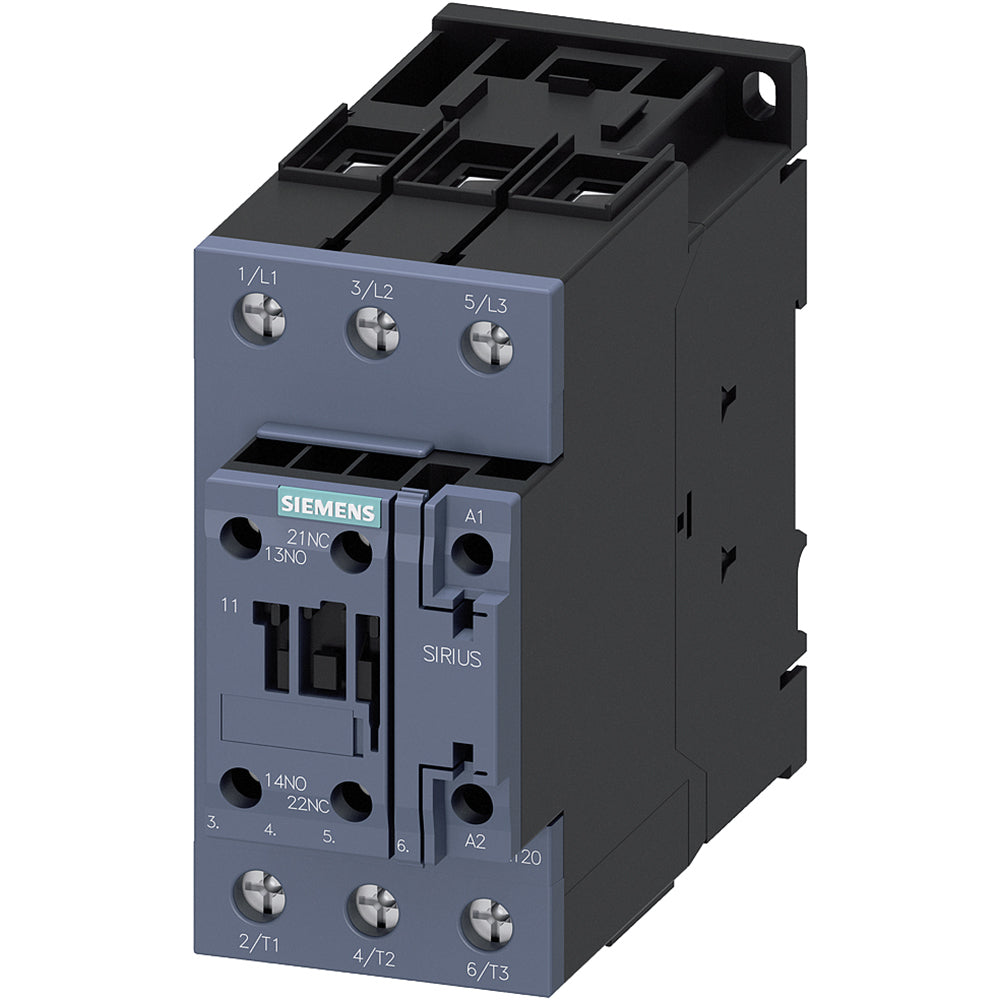

3RT20361AK600UA0 is a Siemens 3-pole motor contactor designed for reliable motor control in industrial applications.3RT20361AK600UA0 features a 25 HP rating at 460/575 V, with a coil voltage of 110 V AC at 50 Hz and 120 V AC at 60 Hz. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, screw terminal connections, and is built to NEMA Size S2 standards. This contactor supports DIN rail or threaded mounting and operates efficiently with a power factor optimized coil.
- Manufacturer: Siemens
- Part Number: 3RT20361AK600UA0
- Motor HP Rating: 25 HP at 460/575 V
- Poles: 3
- Coil Voltage: 110 V AC (50 Hz) / 120 V AC (60 Hz)
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: DIN Rail / Threaded
- Terminal Type: Screw Terminal
- NEMA Size: S2
- Enclosure Type: IP00 / IP20
- Operating Temperature Range: -25 to 60 °C
- Operating Cycles: 10,000,000
Specifications
- Part Number: 3RT20361AK600UA0
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
- Family : 3RT20
Product Data
- UPC : 887621916350
- Country of Origin : Germany
- Dimensions : 4.843 x 2.441 x 5.748 inch
- Weight : 2.172 lb
