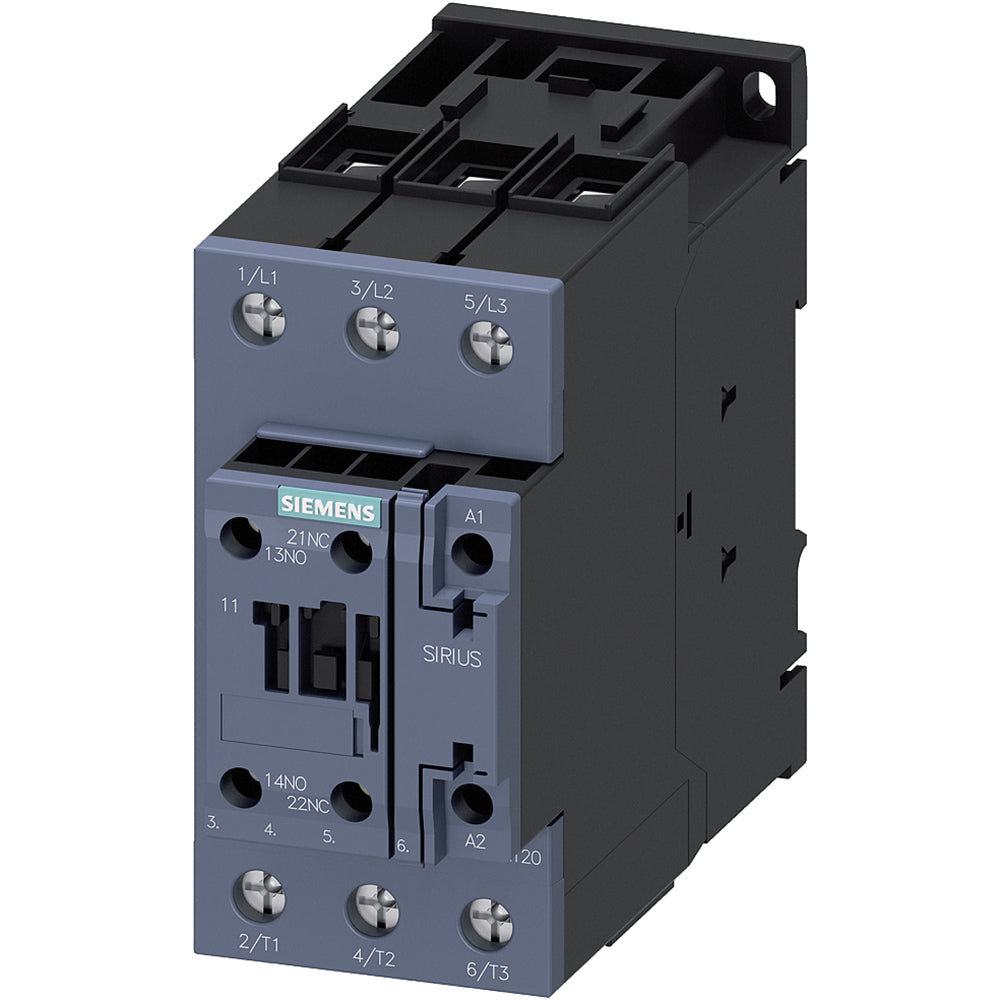

3RT20361AC20 - Siemens 3-Pole 50A 24V AC Coil SIRIUS Power Contactor S2 Frame DIN Rail Mount

3RT20361AC20

3RT20361AC20 is a Siemens SIRIUS power contactor designed for motor control applications with a 3-pole, 50 amp rating and 24 V AC coil voltage.3RT20361AC20 features a size S2 frame, suitable for switching motors up to 22 kW at 400 V 3-phase. It includes 3 normally open main contacts and 1 NO + 1 NC auxiliary contacts, with screw terminal connections and DIN rail mounting. The contactor supports AC-3 utilization category with a coil power rating of 188/210 VA pickup and 16.5/17.2 VA holding power. It operates reliably in temperatures from -25 to 60 degrees Celsius and has an operating cycle rating of 10 million cycles.

Key Specifications
• Amperage: 50 A at 400 V AC-3
• Coil Voltage: 24 V AC, 50/60 Hz
• Number of Poles: 3
• Contact Configuration: 3 NO main contacts, 1 NO + 1 NC auxiliary contacts
• Frame Size: S2
• Mounting Type: DIN Rail / Snap-On / Threaded
• Contact Rating: A600/P600
• Power Rating: 22 kW at 400 V 3-phase
• Terminal Type: Screw
• Operating Temperature: -25 to 60 °C
• Operating Cycles: 10,000,000
• Enclosure Type: IP00/IP20

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20361AC20
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors
• Family : 3RT20

Product Data

• UPC : 887621916183
• Country of Origin : Germany
• Dimensions : 4.823 x 2.441 x 5.591 inch
• Weight : 2.183 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
