Description
3RT2036-1AK60

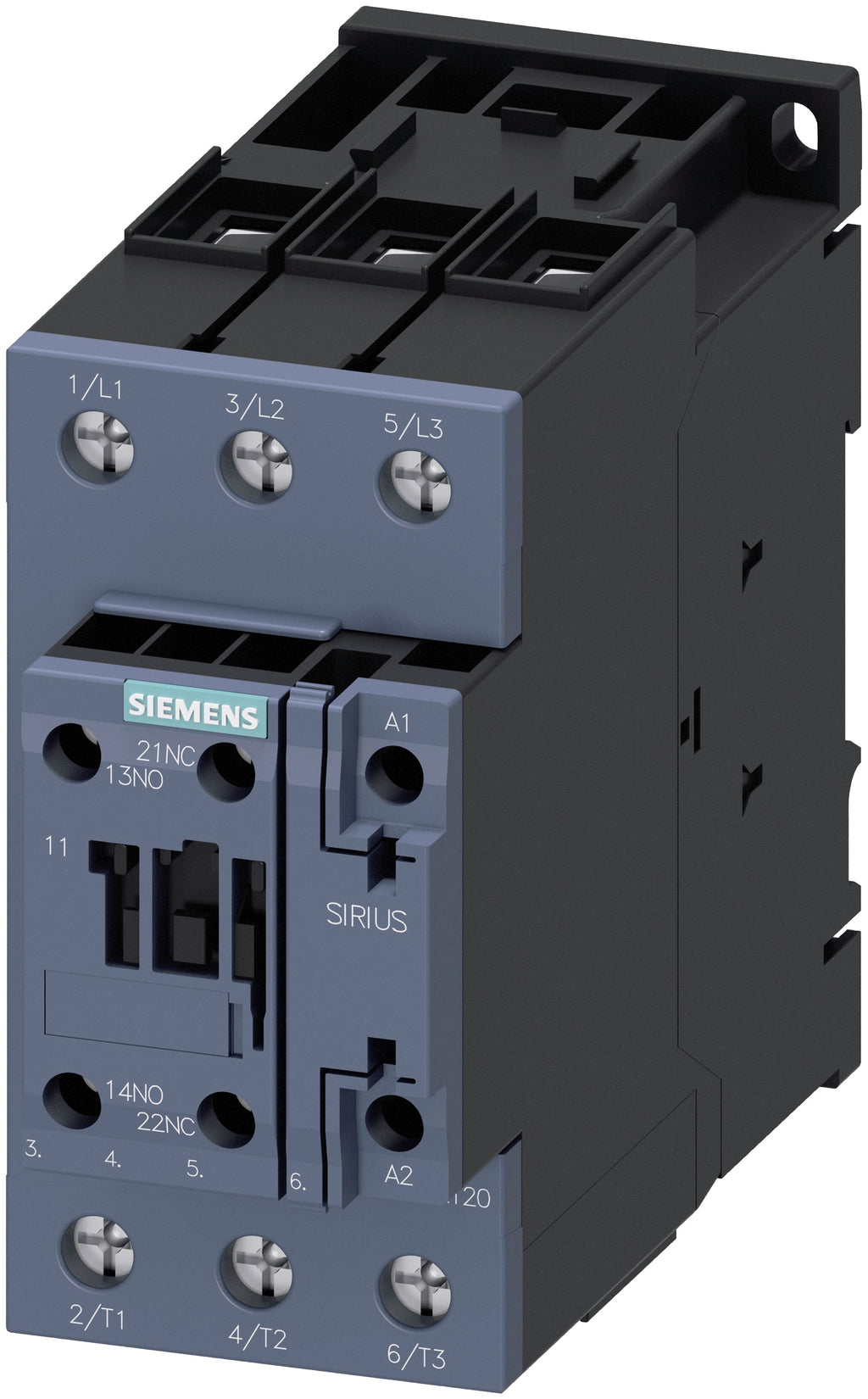

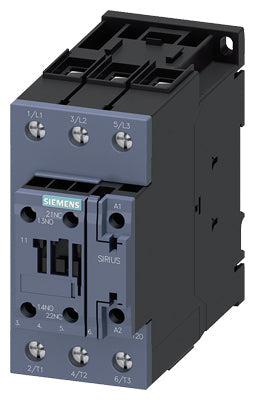

3RT2036-1AK60 is a Siemens SIRIUS 3-pole power contactor designed for reliable motor control applications. This contactor features a 110/120VAC coil, 50A maximum load current, and is rated for 22kW at 400V. It offers a robust screw terminal connection and is suitable for DIN rail or snap-on mounting. The device is built for demanding environments with a wide operating temperature range and high cycle life. The Siemens SIRIUS 3RT2036-1AK60 is ideal for industrial motor switching, providing dependable performance in AC-3e/AC-3 applications. It includes 1NO+1NC auxiliary contacts and is constructed in the S2 size frame for compact installation. The contactor is designed for use with 50/60Hz frequency and features a high interrupt rating for safety and reliability.
- Manufacturer: Siemens
- Series/Frame: SIRIUS S2
- Part Number: 3RT2036-1AK60
- Number of Poles: 3
- Maximum Load Current: 50A
- Coil Voltage: 110/120VAC
- Frequency: 50/60Hz
- Power Rating: 22kW at 400V
- Mounting Type: DIN Rail/Snap-On/Threaded
- Terminal Type: Screw Terminal
- Auxiliary Contacts: 1NO+1NC
- Operating Temperature: -25 to 60°C
- Operating Cycles: 10,000,000
- Interrupt Rating: AC-3e/AC-3
- Enclosure: IP00/IP20
- Application: Motor Control
Specifications
- Part Number: 3RT2036-1AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 690
- Amperage : 50
- Poles : 3
- Coil Voltage Maximum : 120
Product Data
- Country of Origin : Germany
- Weight : 2.178
