3RT20351AK60 - Siemens 40A 690V 3-Pole Power Contactor with 110/120V AC Coil

3RT20351AK60

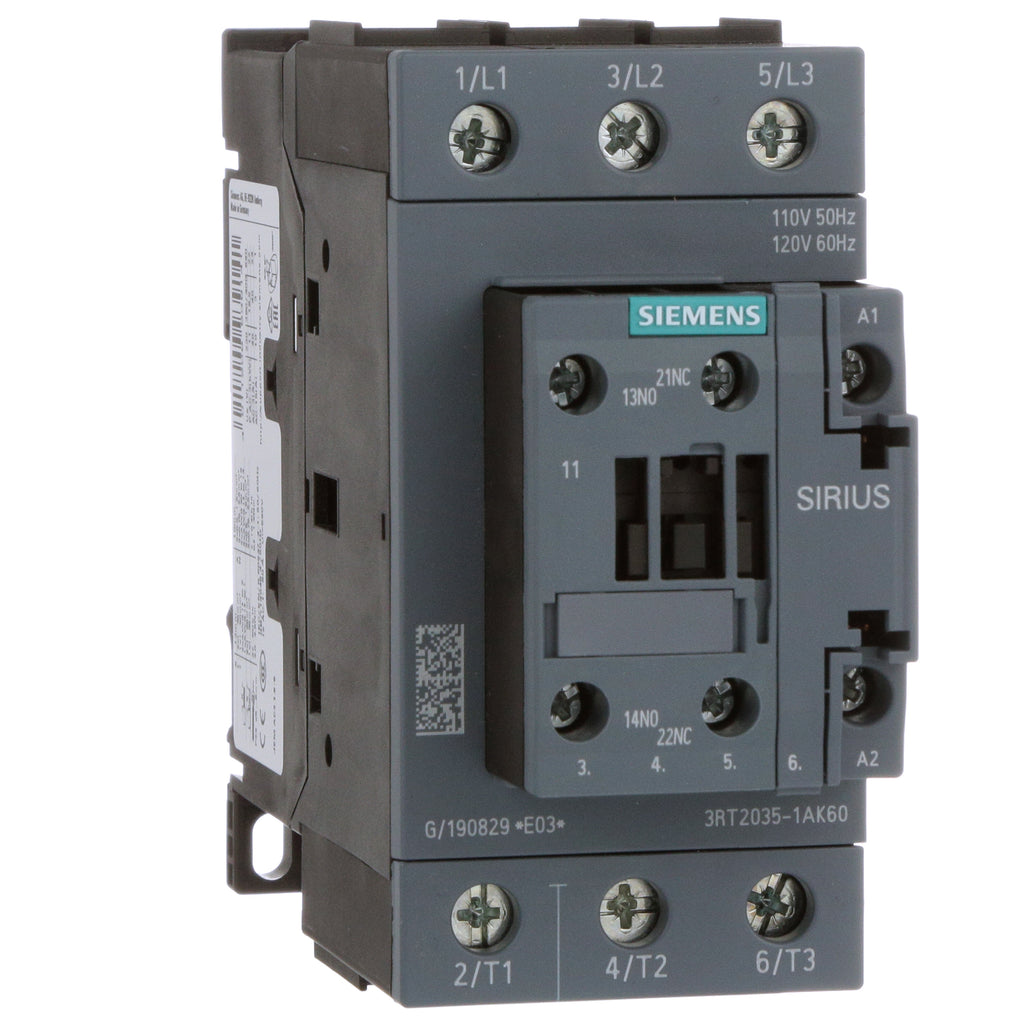

3RT20351AK60 is a Siemens 3-pole power contactor designed for motor control applications with a 40 amp rating and 690V maximum voltage.3RT20351AK60 features a 110/120V AC coil operating at 50/60 Hz, suitable for switching loads up to 18.5 kW at 400V AC. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact with screw terminal connections. The contactor is sized S2 and mounts vertically, meeting UL, CSA, CE, EAC, CCC, and C-TICK certifications.

Key Specifications
• Amperage: 40 A
• Voltage: 690 V max switching voltage
• Coil Voltage: 110 V AC (50 Hz) / 120 V AC (60 Hz)
• Number of Poles: 3
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: Vertical
• Termination Style: Screw Terminal
• Power Rating: 18.5 kW at 400 V AC
• Size/Frame: S2
• Certifications: UL, CSA, CE, EAC, CCC, C-TICK

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20351AK60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 690
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Draw-Out
• Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
• Coil Voltage Maximum : 120
• Protection : Solid State

Product Data

• UPC : 887621915520
• GTIN : 4011209939141
• Country of Origin : Germany
• Dimensions : 4.823 x 2.441 x 5.591 inch
• Weight : 2.165 lb
