Description

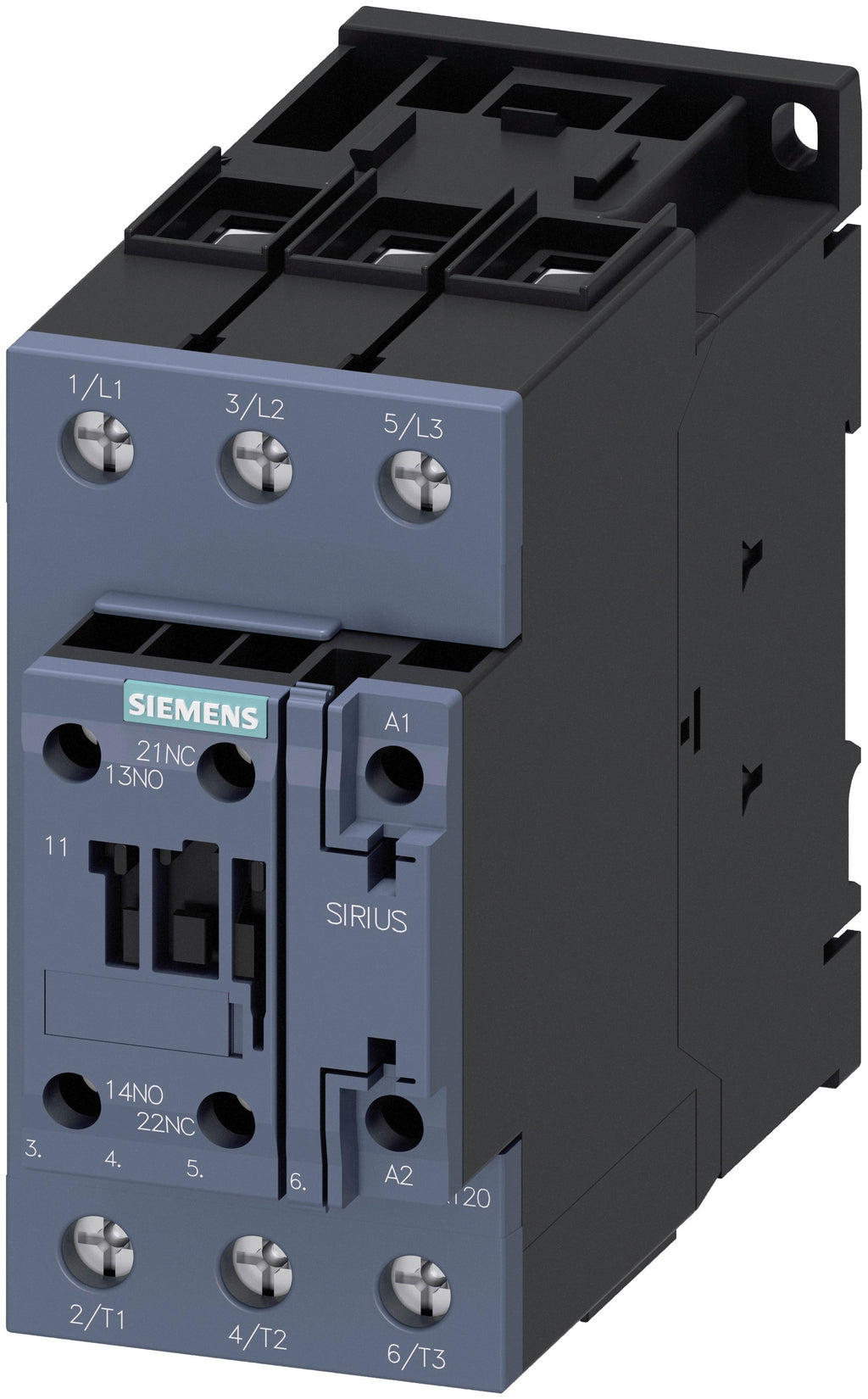

3RT2035-1AM20
3RT2035-1AM20 is a Siemens IEC power contactor designed for motor control applications with a 41 ampere rating and 3 poles.
This contactor features a 208 V AC coil operating at 50/60 Hz, supports 18.5 kW motor power at 400 V, and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. It is built to size S2 frame specifications with screw terminal connections and is suitable for DIN rail or horizontal mounting. The device conforms to IEC standards and is optimized for AC-3 utilization category switching.
- Key Specifications
- Amperage: 41 A
- Voltage: 208 V AC coil, 400 V motor power
- Poles: 3
- Mounting Type: 35 mm DIN rail / horizontal mount
- Interrupt Rating: IEC AC-3 utilization category
- Frame/Size: S2
- Auxiliary Contacts: 1 NO + 1 NC
- Connection Type: Screw terminal
- Frequency: 50/60 Hz
- Motor Power Rating: 18.5 kW at 400 V
- Certifications: IEC compliant
- Part Number: 3RT2035-1AM20
- Manufacturer : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 690
- Amperage : 45
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 208
- UPC : 088762191556
- Weight : 2.15
