Description

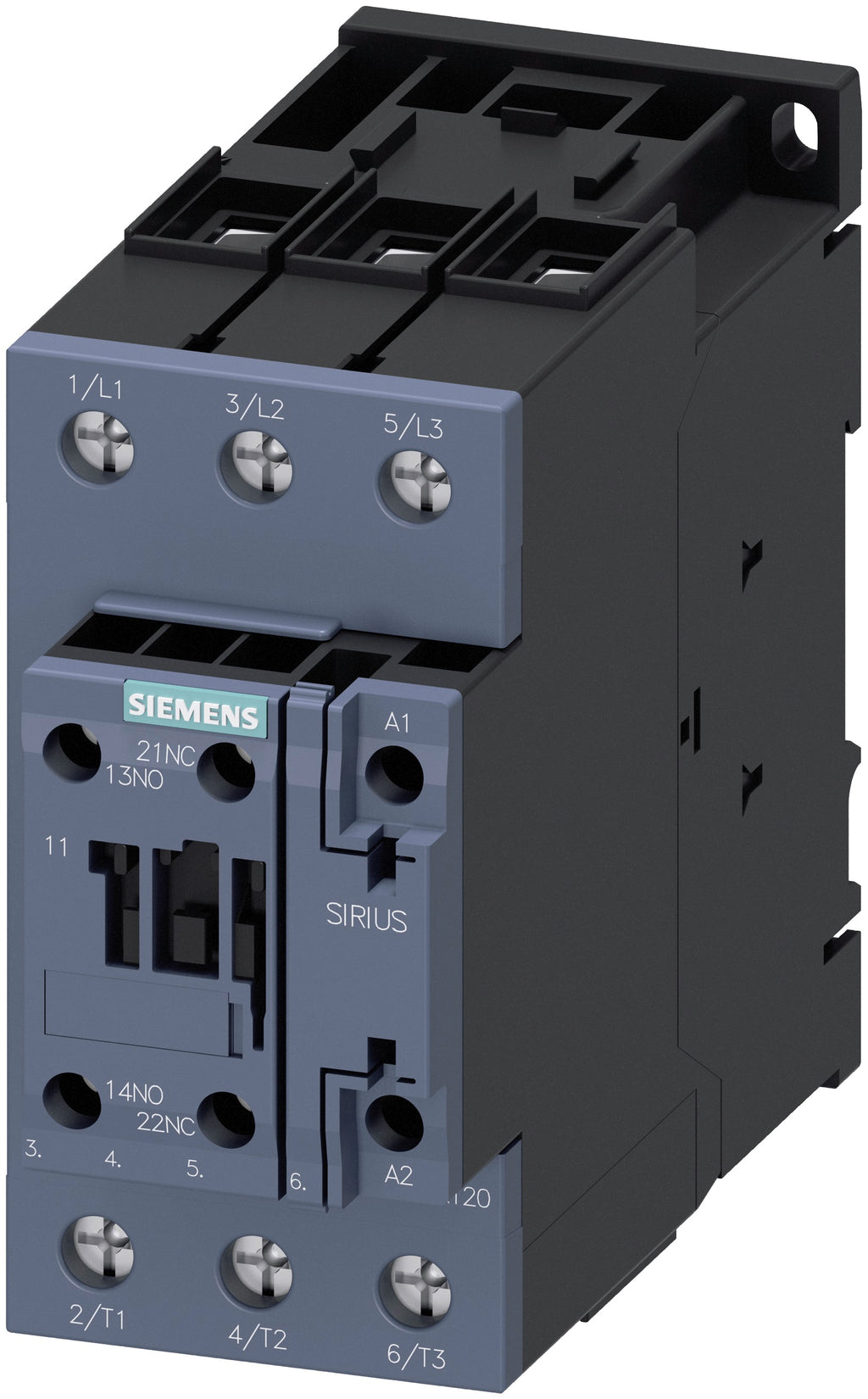

3RT2035-1AK60
3RT2035-1AK60 is a Siemens 3-pole IEC power contactor designed for motor control applications with a 40 amp rating and 690V maximum voltage.3RT2035-1AK60 features a 3-phase design, size S2 frame, and includes 1 normally open and 1 normally closed auxiliary contact. It supports motor ratings of 15 HP at 230V and 30 HP at 460V, with a coil voltage of 110/120V AC at 50/60 Hz. The contactor mounts on a standard 35mm DIN rail and uses screw terminals for secure wiring.
- Key Specifications
- Amperage: 40 Amps
- Voltage Rating: Up to 690V
- Poles: 3
- Motor HP Rating: 15 HP @ 230V, 30 HP @ 460V
- Coil Voltage: 110/120V AC, 50/60 Hz
- Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
- Mounting Type: 35mm DIN Rail
- Terminal Type: Screw Terminals
- Size/Frame: S2
Specifications
- Part Number: 3RT2035-1AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Voltage : 690
- Amperage : 40
- Poles : 3
- Coil Voltage Maximum : 120
Product Data
- UPC : 887621915520
- GTIN : 00887621915520
- Weight : 1 lb
