Description
3RT2028-4AP60

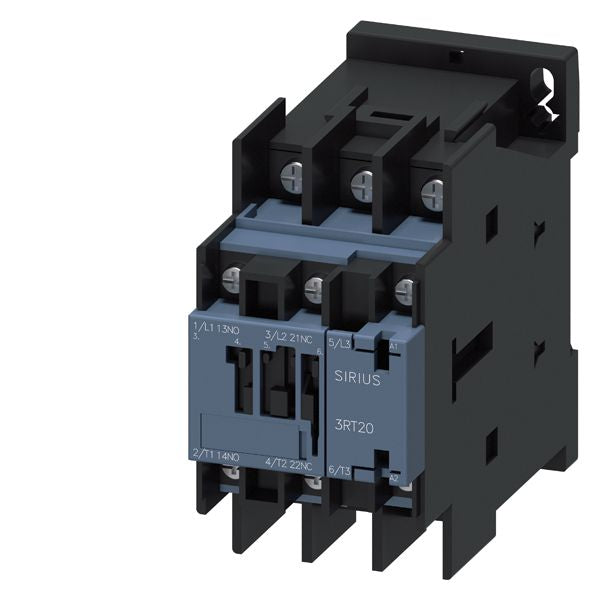

3RT2028-4AP60 is a Siemens SIRIUS 3-pole motor contactor designed for reliable motor control in industrial applications. This contactor features a 38A current rating, 600V maximum switching voltage, and is suitable for use with motors up to 18.5 kW at 400V. The unit is equipped with one normally open and one normally closed auxiliary contact for flexible control circuit integration. The Siemens 3RT2028-4AP60 is built for durability and ease of installation, featuring ring lug terminals for secure main conductor connections and a compact S0 frame size. It is designed for mounting on standard 35 mm DIN rail or vertical mounting, making it suitable for a wide range of control panel configurations. The contactor is rated for AC-3e/AC-3 duty and is compatible with a 220 V AC, 50 Hz / 240 V AC, 60 Hz coil for versatile power supply options.
- 38A continuous current rating
- 600V maximum switching voltage
- 3-pole configuration
- 18.5 kW at 400V motor rating
- 1 NO + 1 NC auxiliary contacts
- Ring lug terminal connections
- 35 mm DIN rail or vertical mounting
- S0 frame size
- AC-3e/AC-3 duty rating
- 220 V AC, 50 Hz / 240 V AC, 60 Hz coil compatibility
- IEC switching motor contactor
Specifications
- Part Number: 3RT2028-4AP60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 38
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
Product Data
- UPC : 066264391719
- GTIN : 00662643917192
- Weight : 1
