Description
3RT2028-2AG20

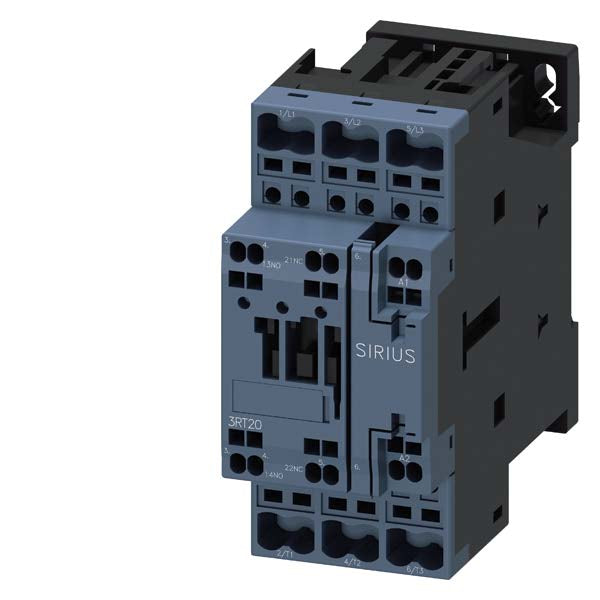

3RT2028-2AG20 is a Siemens SIRIUS power contactor designed for AC-3 motor control applications with a rated capacity of 18.5 kW at 400 V and 38 A switching current. This 3-pole contactor features a compact Size S0 frame and is equipped with 1 NO (normally open) and 1 NC (normally closed) auxiliary contacts for flexible control logic integration. The unit operates on 110 V AC control supply at both 50 Hz and 60 Hz, making it suitable for global industrial installations. Spring-loaded terminals provide secure, maintenance-free connections in demanding environments.
- Rated Power: 18.5 kW at 400 V
- Rated Current: 38 A
- Poles: 3-pole
- Control Supply: 110 V AC, 50/60 Hz
- Auxiliary Contacts: 1 NO + 1 NC
- Frame Size: S0
- Terminal Type: Spring-loaded
- Duty: AC-3e/AC-3
- Mounting: 35 mm DIN rail compatible
Specifications
- Part Number: 3RT2028-2AG20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 38
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 110
- Coil Voltage Minimum : 110
Product Data
- UPC : 066264391823
- GTIN : 00662643918236
- Weight : 1
