Description
3RT2028-2AC20

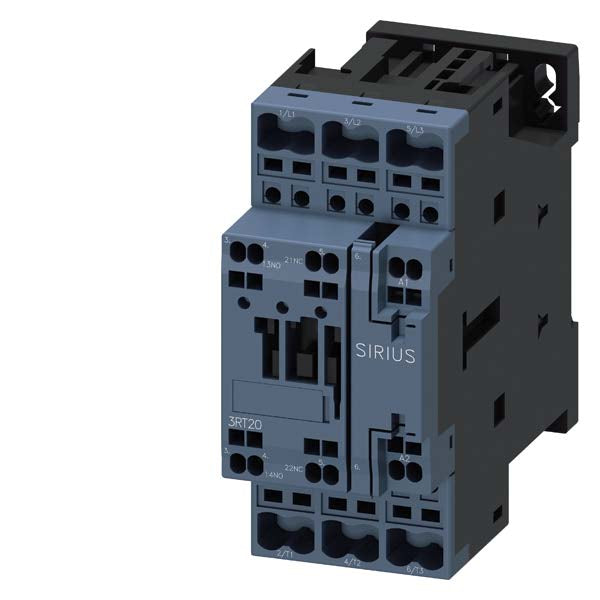

3RT2028-2AC20 is a Siemens power contactor designed for motor control applications with a 38 ampere rating and 3 poles.This contactor features a 24 V AC coil operating at 50/60 Hz, suitable for controlling motors up to 18.5 kW at 400 V under AC-3e/AC-3 utilization categories. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, spring-loaded terminals for secure wiring, and is sized S0 for compact mounting. The device is intended for upright mounting positions and supports switching voltages up to 690 VAC.
- Amperage: 38 A
- Voltage: 24 V AC coil, 400 V operational
- Poles: 3
- Power rating: 18.5 kW at 400 V
- Auxiliary contacts: 1 NO + 1 NC
- Terminal type: Spring-loaded terminals
- Size/Frame: S0
- Mounting: Upright position
- Utilization category: AC-3e / AC-3
- Max switching voltage: 690 VAC
Specifications
- Part Number: 3RT2028-2AC20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 38
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
Product Data
- UPC : 066264391820
- GTIN : 00662643918205
- Weight : 1
