Description
3RT2028-1AR60

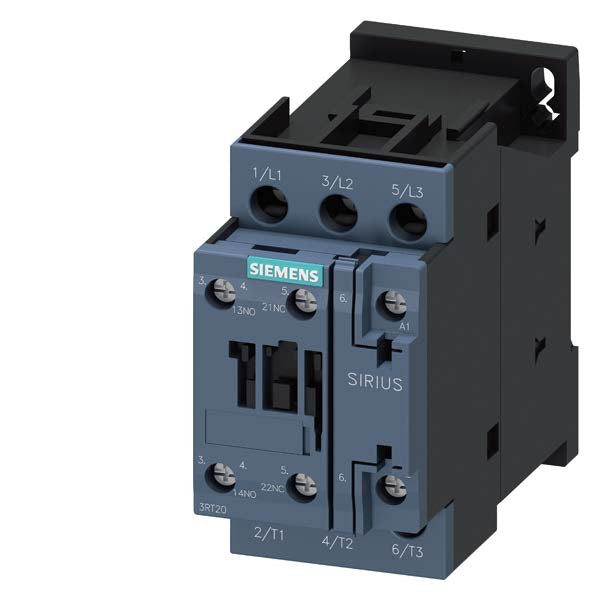

3RT2028-1AR60 is a Siemens power contactor designed for medium-power motor control applications with AC-3e/AC-3 rating. This 3-pole contactor delivers reliable switching performance in industrial automation and motor control circuits. 3RT2028-1AR60 features a rated current of 38 A at 400 V, with power handling capability of 18.5 kW. The contactor operates on AC control supply voltage of 400 V at 50 Hz or 400-440 V at 60 Hz, making it suitable for global industrial installations. It includes 1 NO and 1 NC auxiliary contact for enhanced control flexibility and uses screw terminal connections for secure wiring. The unit is rated for switching voltages up to 690 VAC and operates reliably across a temperature range of -25°C to 60°C. Size S0 frame provides compact integration into control panels and motor starter assemblies.
- Rated Current: 38 A at AC-3
- Power Rating: 18.5 kW at 400 V
- Poles: 3-pole
- Control Supply Voltage: 400 V AC 50 Hz / 400-440 V AC 60 Hz
- Auxiliary Contacts: 1 NO + 1 NC
- Maximum Switching Voltage: 690 VAC
- Terminal Type: Screw Terminal
- Frame Size: S0
- Operating Temperature Range: -25°C to 60°C
- Duty Rating: AC-3e/AC-3
Specifications
- Part Number: 3RT2028-1AR60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 38
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 440
Product Data
- UPC : 066264391802
- GTIN : 00662643918021
- Weight : 1
