Description
3RT2028-1AP04

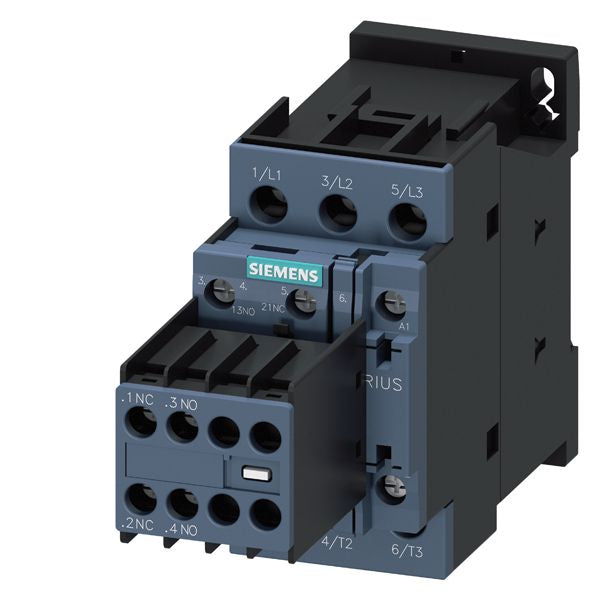

3RT2028-1AP04 is a Siemens power contactor designed for motor control applications with a 38 ampere rating and 3-pole configuration.This contactor features a 230 V AC, 50 Hz coil voltage and is rated for AC-3 duty at 18.5 kW / 400 V. It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts. The device is size S0 and uses screw terminals for secure wiring. It supports DIN rail or vertical mounting.
- Rated operational current: 38 A
- Number of poles: 3
- Coil voltage: 230 V AC, 50 Hz
- Power rating: 18.5 kW at 400 V (AC-3)
- Auxiliary contacts: 2 NO + 2 NC
- Size: S0 frame
- Mounting type: 35 mm DIN rail or vertical mount
- Terminal type: Screw terminals
Specifications
- Part Number: 3RT2028-1AP04
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 38
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 230
Product Data
- UPC : 066264391800
- GTIN : 00662643918007
- Weight : 1
