Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20271BB40

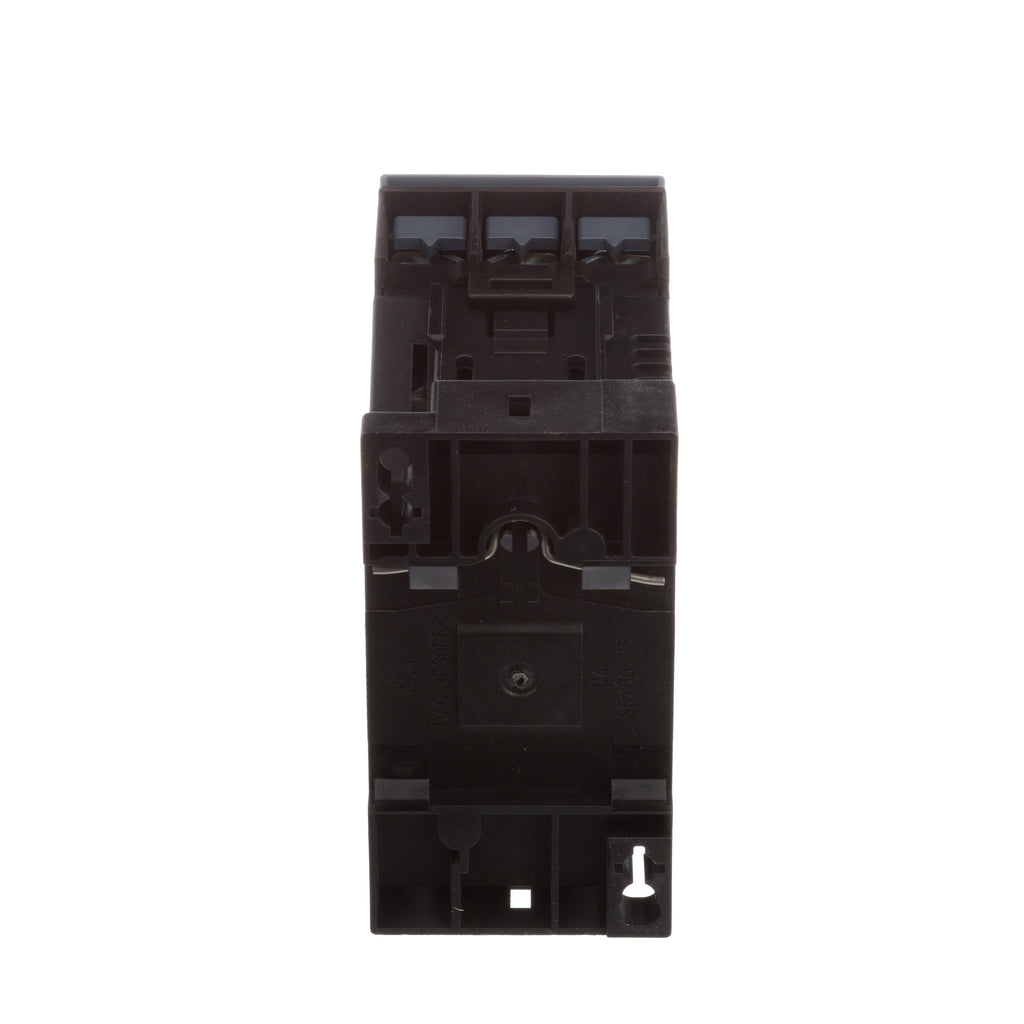

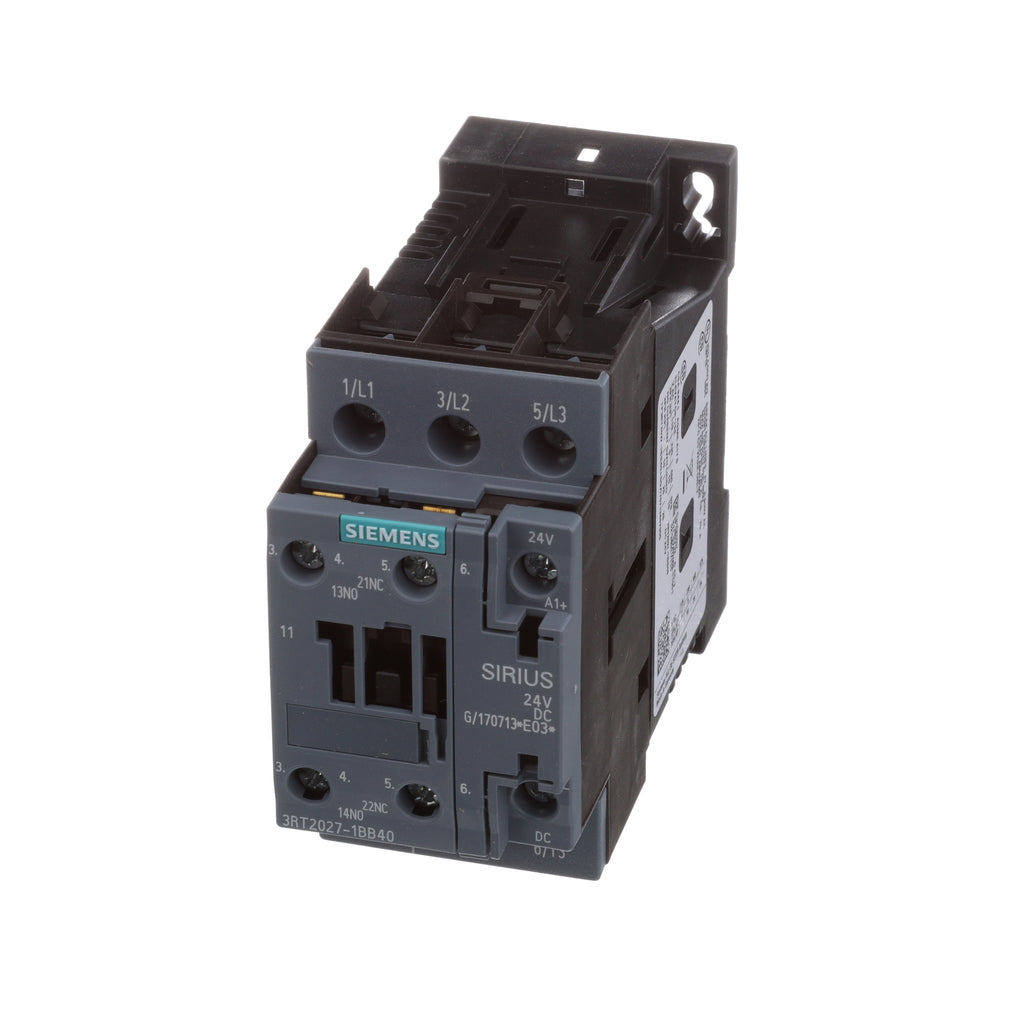

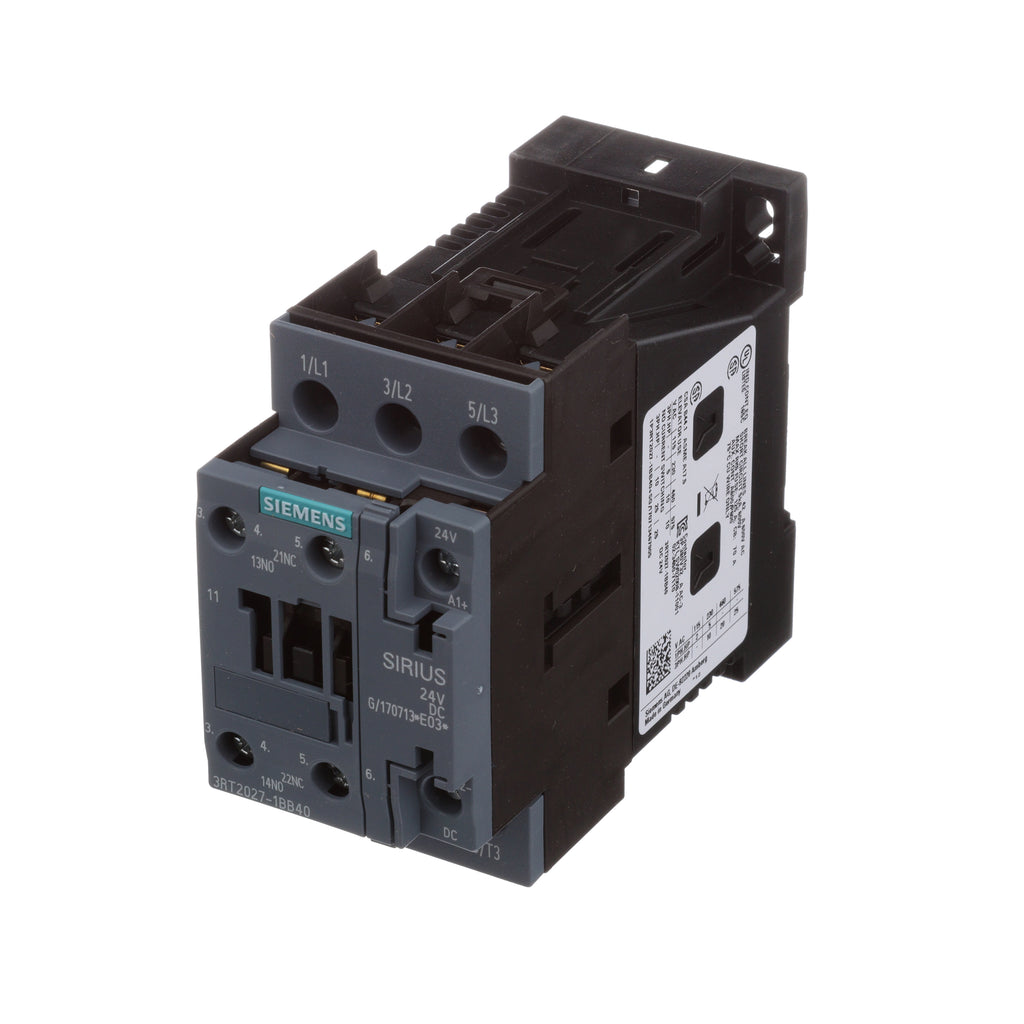

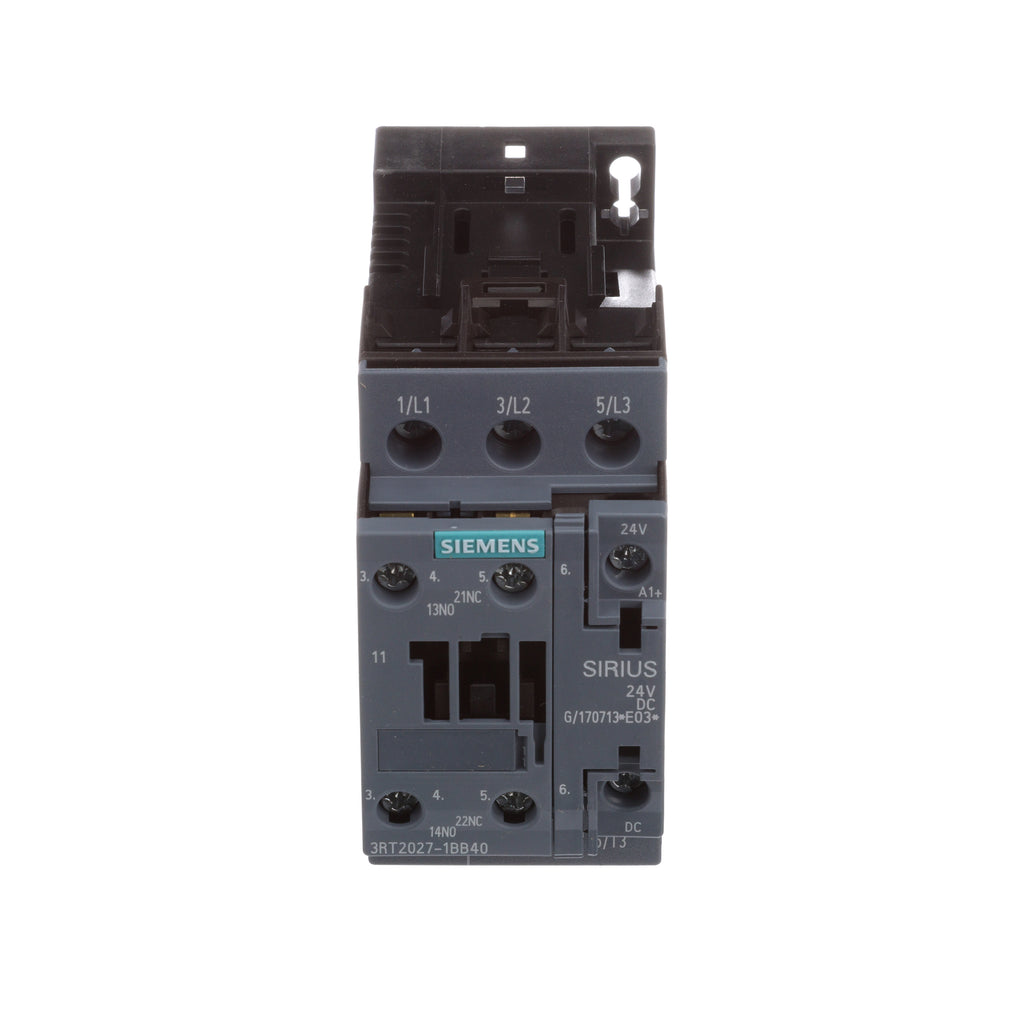

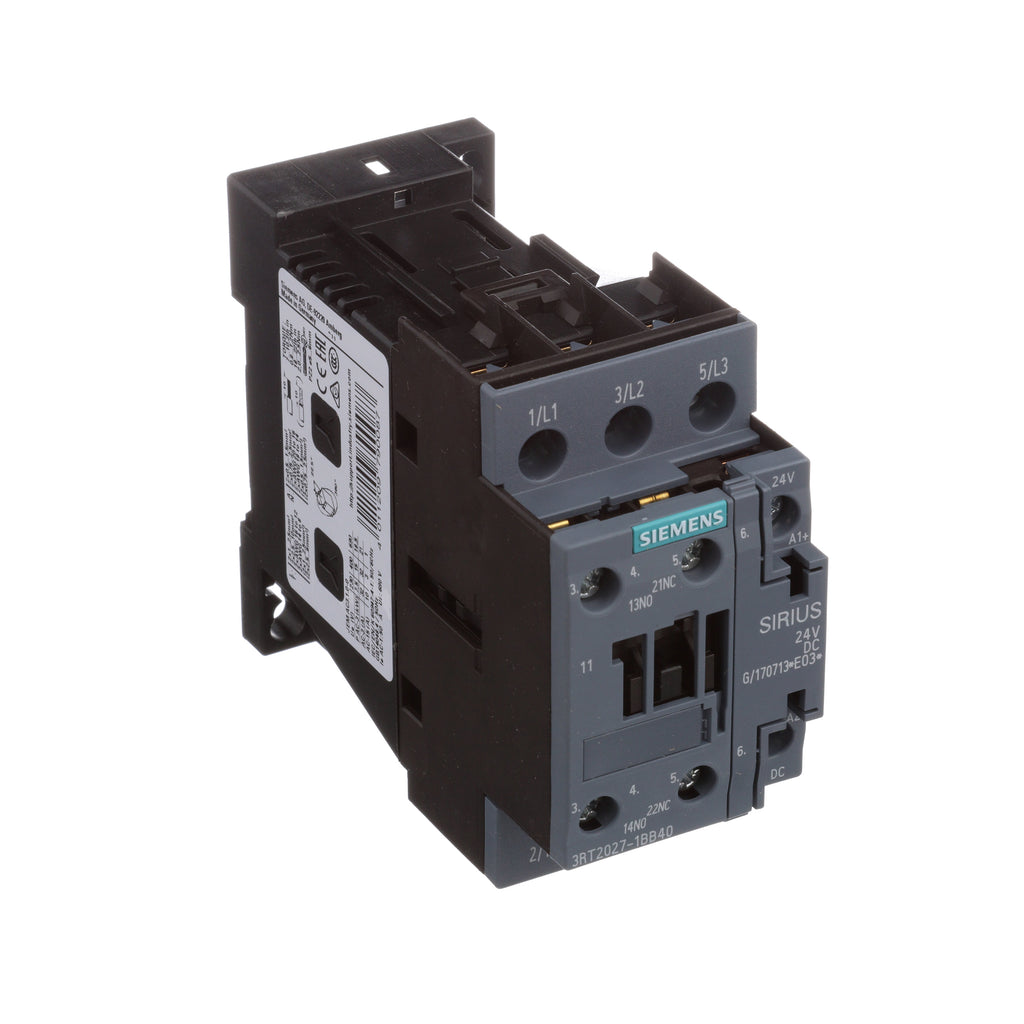

3RT2027-1BB40 is a Siemens 3-pole motor contactor designed for reliable motor control with a 24V DC coil and 32 amp rating.This Siemens Sirius contactor features a size S0 frame, supports 10 HP at 230V and 20 HP at 460V for three-phase motors, and includes 1 normally open and 1 normally closed auxiliary contact. It has screw terminals and mounts on a standard 35mm DIN rail. The contactor conforms to IEC standards and is suitable for AC-3e/AC-3 utilization categories with a rated operational current of 32 amps.
- Key Specifications
- Amperage: 32 A
- Voltage Rating: 24 V DC coil voltage
- Poles: 3-pole
- Horsepower: 10 HP @ 230 V, 20 HP @ 460 V (3-phase)
- Frame Size: S0
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: DIN rail mount
- Terminal Type: Screw terminals
- Standards: IEC 60946 compliant
- Utilization Category: AC-3e / AC-3
Specifications
- Part Number: 3RT20271BB40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
- Family : 3RT2
Product Data
- UPC : 662643915853
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.547 inch
- Weight : 1.347 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
