Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20271AV60

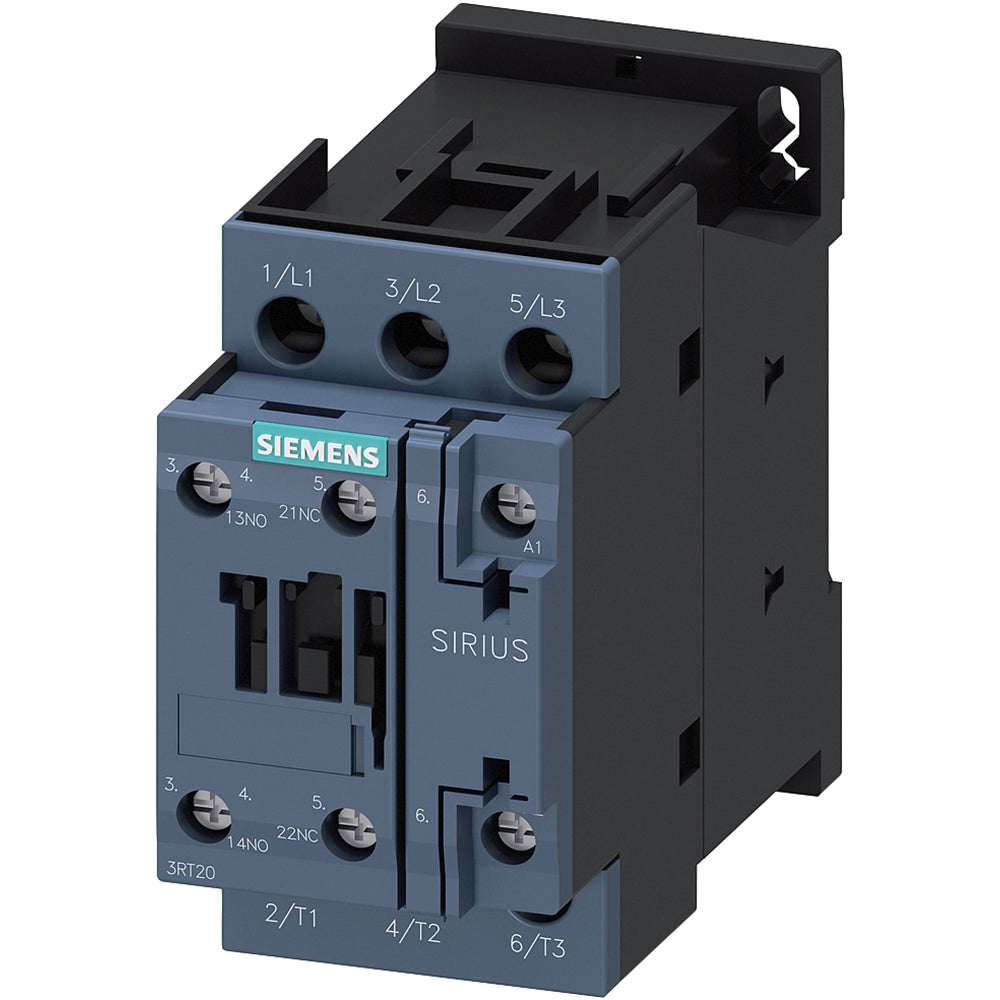

3RT20271AV60 is a Siemens SIRIUS 3-pole power contactor designed for reliable motor control applications. This contactor features a 480VAC coil, 32A current rating, and includes 1NO+1NC auxiliary contacts for versatile control circuit integration. Suitable for DIN rail or vertical mounting, it offers robust performance in industrial environments. The Siemens 3RT20271AV60 is built for switching motors up to 15 kW at 400V, with a maximum switching voltage of 690VAC. It features screw terminals for secure connections and is rated for 10,000,000 operating cycles. The contactor is designed for AC-3e/AC-3 duty, making it ideal for frequent motor starting and stopping.
- Part Number: 3RT20271AV60
- Manufacturer: Siemens
- Series/Frame: SIRIUS S0
- Amperage: 32 A
- Voltage: 480 VAC
- Poles: 3
- Mounting Type: DIN Rail/Vertical
- Interrupt Rating: 690 VAC max
- Contact Configuration: 1NO+1NC auxiliary
- Operating Cycles: 10,000,000
- Power Rating: 15 kW at 400 V
- Terminal Type: Screw
Specifications
- Part Number: 3RT20271AV60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 004089291285
- GTIN : 00040892912852
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.948 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
