Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20271AK600UA0

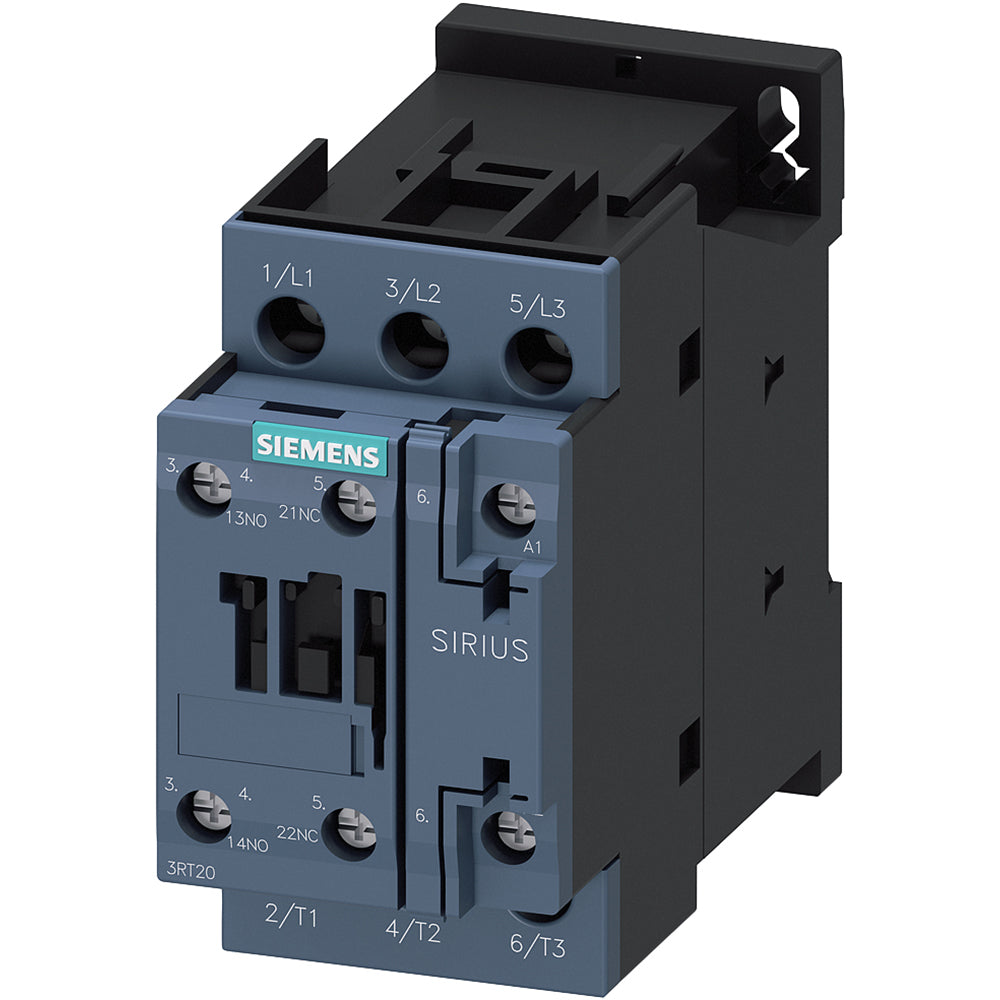

3RT20271AK600UA0 is a Siemens 3-pole motor contactor designed for reliable motor switching applications.This contactor features a 32 ampere current rating with a coil voltage of 110/120 VAC at 50/60 Hz. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, screw terminal connections, and is sized S0 for compact mounting. The device supports motor loads up to 10 HP at 460/575 V and has an IP20 enclosure rating. It is suitable for DIN rail or vertical mounting and operates within a temperature range of -25 to 60 degrees Celsius.
- Manufacturer: Siemens
- Part Number: 3RT20271AK600UA0
- Current Rating: 32 A
- Poles: 3
- Coil Voltage: 110/120 VAC, 50/60 Hz
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: DIN Rail / Vertical
- Terminal Type: Screw
- Size: S0
- Motor Power: 10 HP at 460/575 V
- Enclosure Type: IP20
- Operating Temperature: -25 to 60 °C
Specifications
- Part Number: 3RT20271AK600UA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 887621830649
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.941 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
