3RT20271AK60 - Siemens 32A 400V 3-Pole Power Contactor DIN Rail Mount S0 Frame

3RT20271AK60

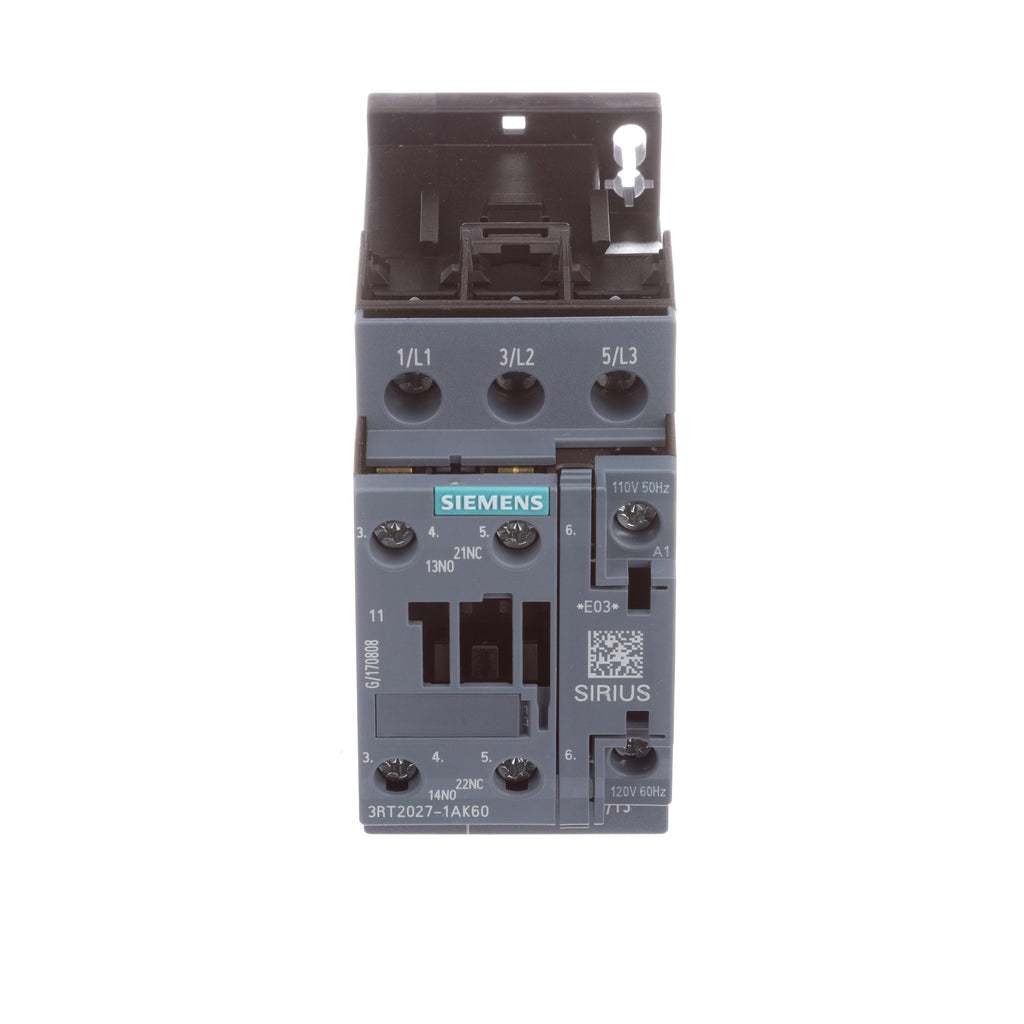

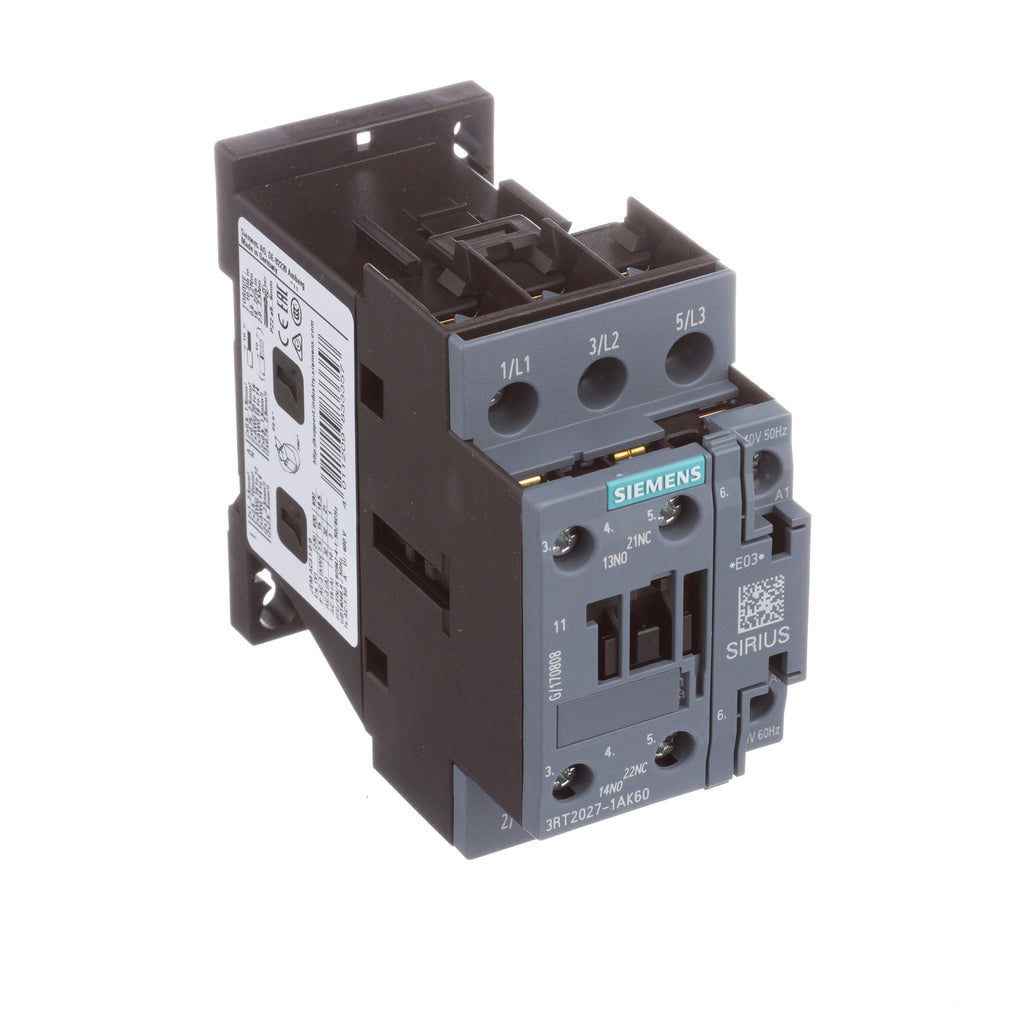

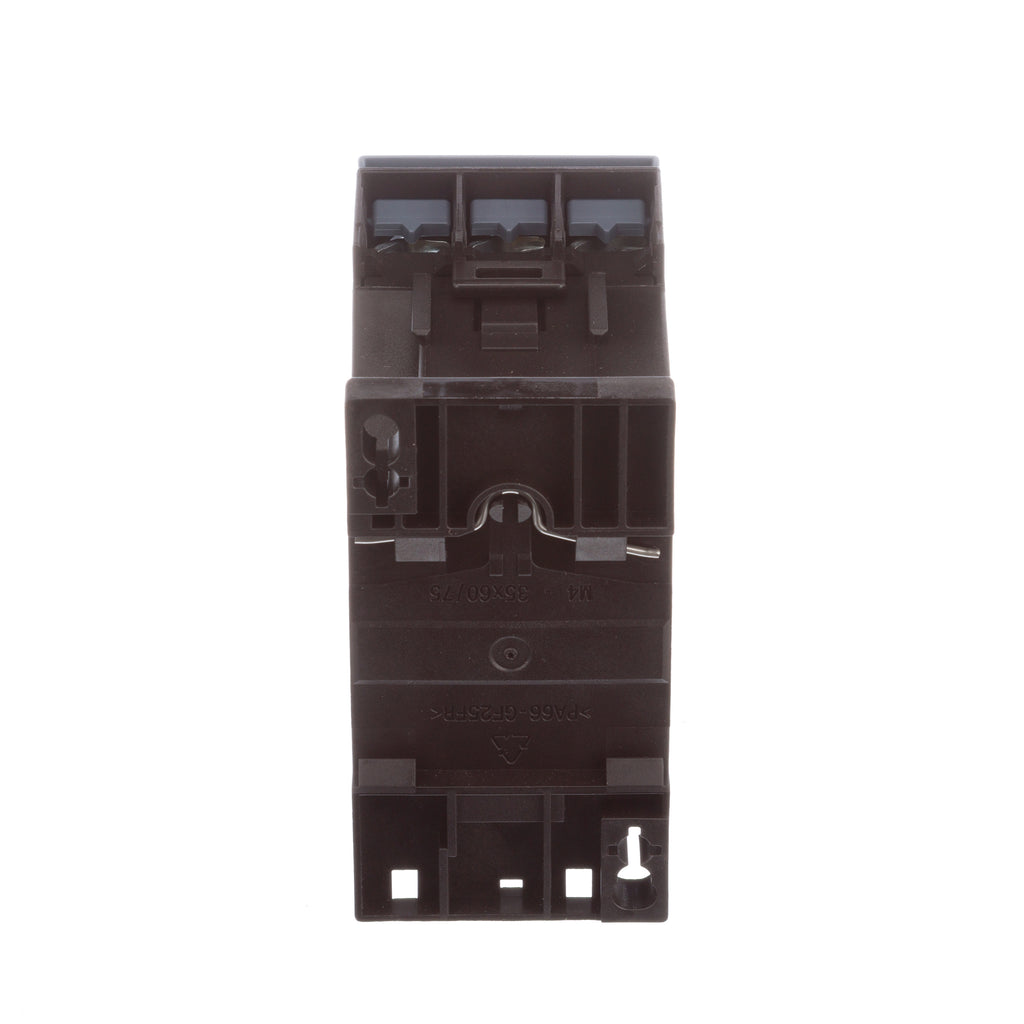

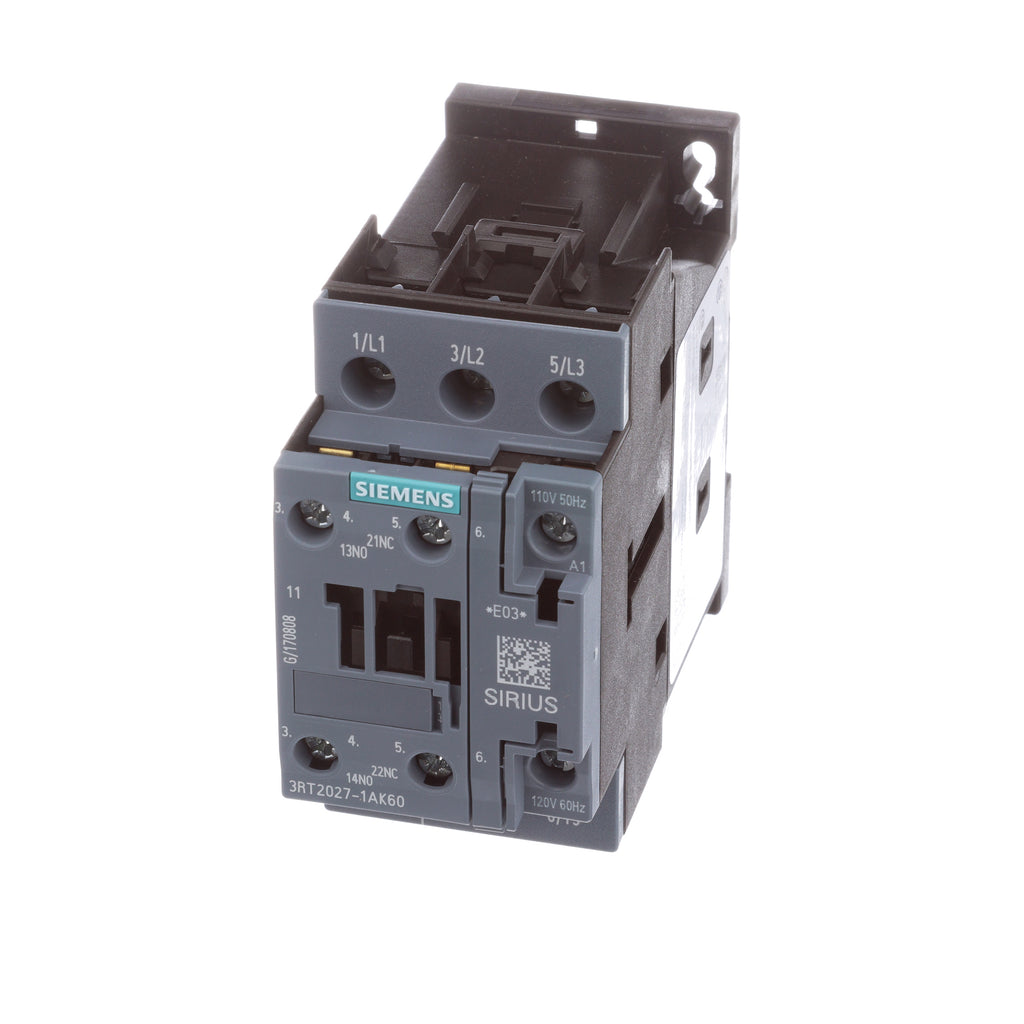

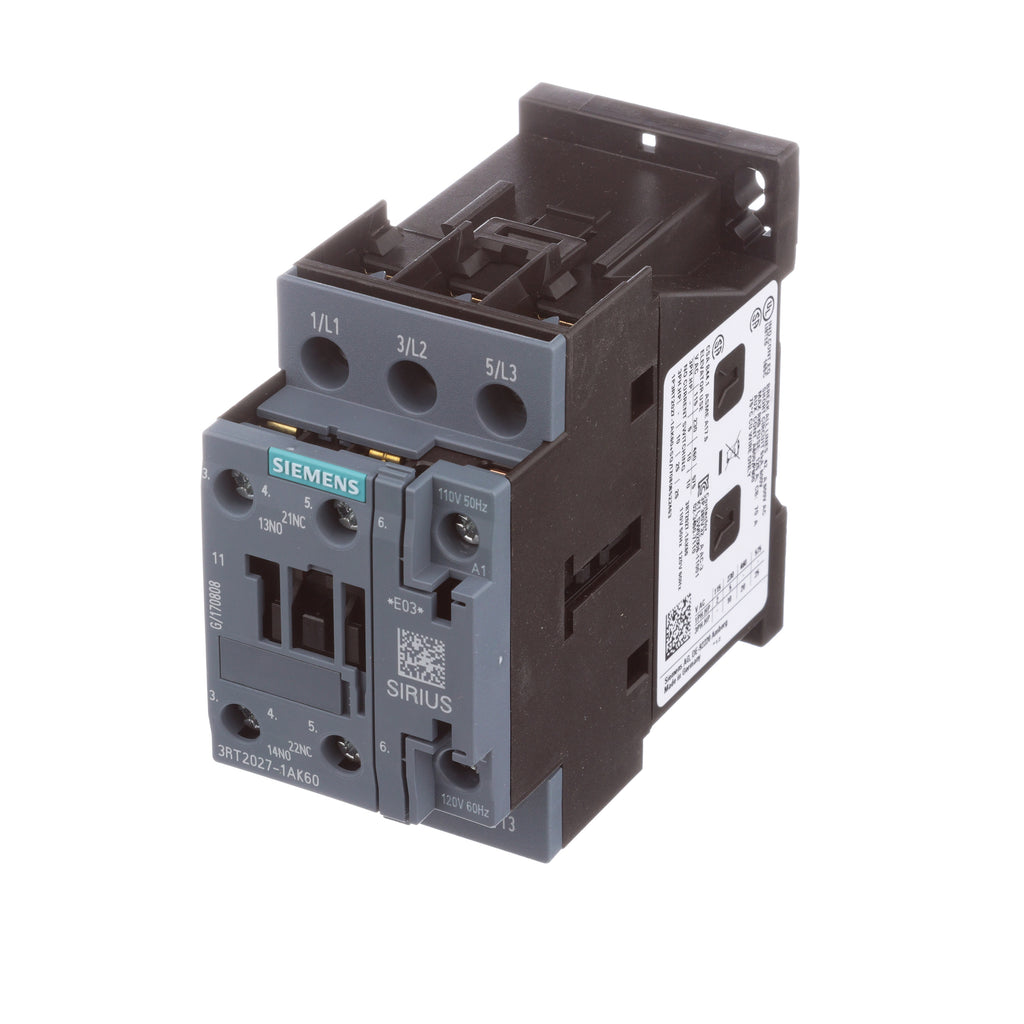

3RT20271AK60 is a Siemens 3-pole power contactor designed for motor control applications with a 32 amp rating at 400 volts and DIN rail mounting.This Siemens SIRIUS series contactor features a size S0 frame, screw terminal connections, and auxiliary contacts configured as 1 NO + 1 NC. It operates at coil voltages of 110/120 VAC with a power factor optimized for 50/60 Hz frequencies. The contactor supports switching of motors up to 15 kW at 400 V AC-3 and is rated for high endurance with 10 million operating cycles. It includes an IP20 enclosure rating and is suitable for industrial control panels.

Key Specifications
• Amperage: 32 A at 400 V AC-3
• Voltage: 400 V max switching voltage, coil voltage 110/120 VAC
• Poles: 3-pole
• Mounting Type: DIN rail mount
• Frame Size: S0
• Auxiliary Contacts: 1 NO + 1 NC
• Contact Configuration: 1NC-1NO, 3NO
• Interrupt Rating: Suitable for motor switching up to 15 kW at 400 V
• Terminal Type: Screw terminals
• Operating Temperature: -25 to 60 °C
• Enclosure Type: IP20
• Operating Cycles: 10,000,000
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 3RT20271AK60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors
• Family : 3RT2



Product Data

• UPC : 662643915730
• GTIN : 00662643915730
• Country of Origin : Germany
• Dimensions : 3.622 x 2.126 x 4.154 inch
• Weight : 0.935 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
