Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description

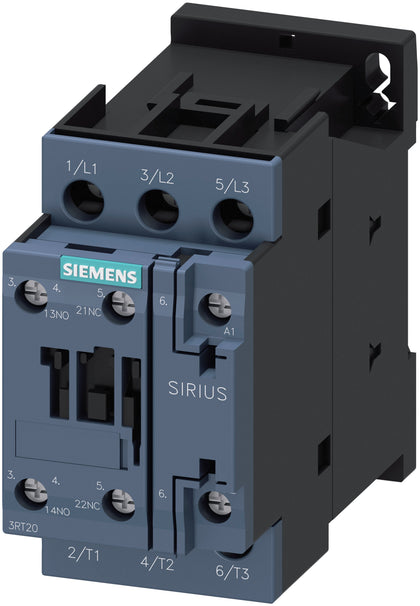

3RT20271AF00
3RT20271AF00 is a Siemens 3-pole motor contactor designed for reliable motor control applications with a 110VAC coil voltage and S0 frame size.This IEC-rated contactor supports up to 32A current and is suitable for AC-3 category motor loads up to 15 kW at 400V. It features a coil power rating of 9.8/77 VA, 1NO+1NC auxiliary contacts, screw terminal connections, and an IP20 enclosure. The device is designed for DIN rail, snap-on, or threaded mounting and operates efficiently within a temperature range of -25 to 60°C. It meets IEC 60946 standards and offers up to 10 million mechanical operating cycles.
- Key Specifications
- Poles: 3
- Rated Current: 32A
- Coil Voltage: 110VAC, 50 Hz
- Frame Size: S0
- Rated Power: 15 kW at 400V (AC-3)
- Contact Configuration: 1NO + 1NC auxiliary contacts
- Mounting Type: DIN rail, snap-on, threaded
- Enclosure Rating: IP20
- Operating Temperature: -25 to 60°C
- Coil Power Rating: 9.8/77 VA
- Standards: IEC 60946
- Mechanical Operating Cycles: 10,000,000
Specifications
- Part Number: 3RT20271AF00
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 066264391568
- GTIN : 00662643915686
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.93 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
